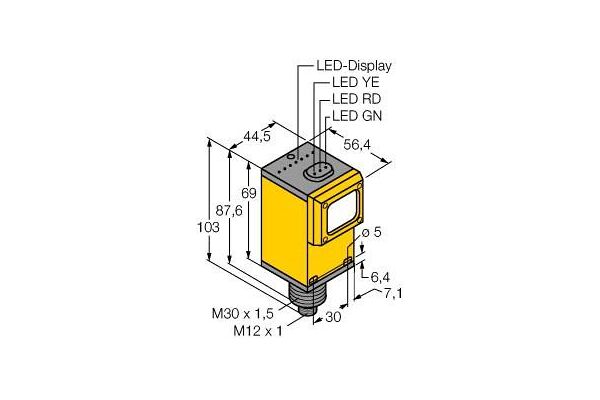

Q459EQ Photoelectric Sensor, Opposed Mode Sensor (Emitter)

Q459EQ

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Operating voltage 5…15 VDC, Max. range 6000 mm, Male M12 × 1, Protection class IP67, Operating voltage: 5…15 VDC, acc. to 60947‐5‐6 (NAMUR), ATEX category II 1 G, Ex zone 0

  • SKU
    0662488376352
  • Manufacturer code
    3037635
  • Type of electric connection
    Connector M12
  • Construction type housing
    Cuboid
  • Width sensor
    54.1 mm
  • Height of sensor
    44.5 mm
  • Length of sensor
    103 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Connector gender
    male
  • Atex category
    ATEX category II 1 G

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-36596-735a542ec88f4e785a6beddc2919851b.pdf (PDF, 534.71 kB)
