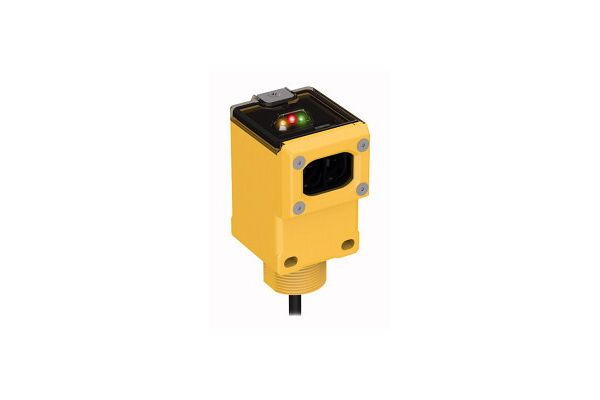

Q45AD9LP W/30' Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Q45AD9LP W/30'

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter, Operating voltage 5…15 VDC, Max. range 6000 mm, Cable length 9 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 5…15 VDC, NAMUR output: dark = 2.1 mA, Acc. to EN 60947‐5‐6 (NAMUR), ATEX category II 1 G, Ex zone 0

  • SKU
    0662488408169
  • Manufacturer code
    3040816
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • With reflector
    true
  • Type of electric connection
    Cable
  • Type of switching output
    NAMUR
  • Type of switch function
    Other
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 1G
  • Explosion safety category for dust
    Other
  • Construction type housing
    Cuboid
  • Width sensor
    44.5 mm
  • Height of sensor
    87.6 mm
  • Length of sensor
    56.4 mm
  • Sensing mode
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    5 s
  • Switching frequency
    100 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarized red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Diameter sensor
    30 mm
  • Housing material
    Plastic
  • Atex category
    ATEX category II 1 G
  • Cable length (m)
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
