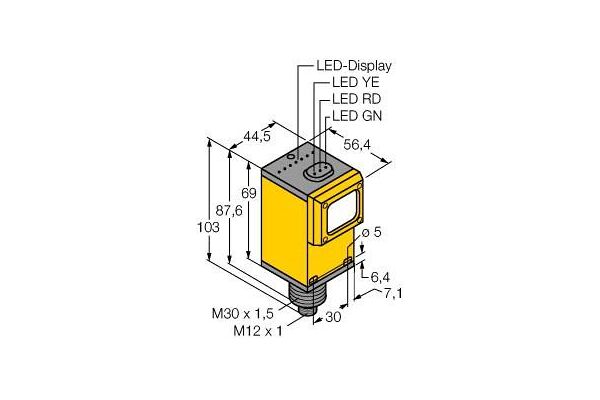

Q45AD9RQ Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

Q45AD9RQ

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Operating voltage 5…15 VDC, Max. range 6000 mm, Male M12 × 1, Protection class IP67, Sensitivity adjusted via potentiometer, Operating voltage: 5…15 VDC, NAMUR output: dark = 2.1 mA, Acc. to EN 60947‐5‐6 (NAMUR), ATEX category II 1 G, Ex zone 0

  • SKU
    0662488376369
  • Manufacturer code
    3037636
  • Type of electric connection
    Connector M12
  • Type of switching output
    NAMUR
  • Type of switch function
    Other
  • Construction type housing
    Cuboid
  • Width sensor
    54.1 mm
  • Height of sensor
    44.5 mm
  • Length of sensor
    103 mm
  • Sensing mode
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    2 s
  • Switching frequency
    250 Hz
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Connector gender
    male
  • Atex category
    ATEX category II 1 G

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-55483-9d25dcfb07e9fe4f442e7e544cf19fce.pdf (PDF, 536.4 kB)
