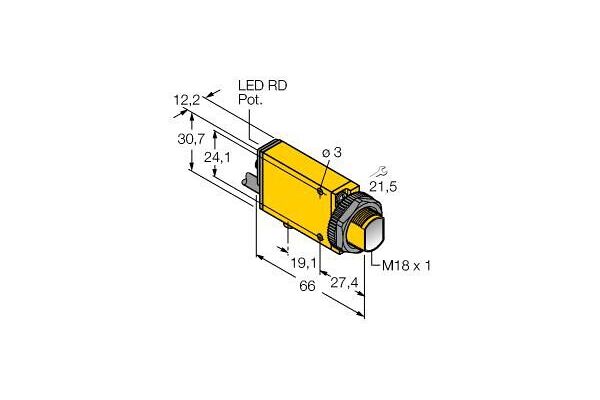

MIAD9R Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver)

MIAD9R

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), Operating voltage 5…15 VDC, Max. range 6000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, Sensitivity adjustable via potentiometer, Alignment indicator, Operating voltage: 5…15 VDC (NAMUR), NAMUR output in accordance with DIN 19234 (IEC/EN 60947-5-6), ATEX category II 1 G, Ex zone 0

  • SKU
    0662488401443
  • Manufacturer code
    3040144
  • Setting procedure
    Other
  • Type of electric connection
    Cable
  • Type of switching output
    NAMUR
  • Type of switch function
    Other
  • Construction type housing
    Cuboid
  • Width sensor
    12.3 mm
  • Height of sensor
    30.7 mm
  • Length of sensor
    66 mm
  • Sensing mode
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    2 s
  • Switching frequency
    100 Hz
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • Min. reflector distance
    0 mm
  • Diameter sensor
    18 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Atex category
    ATEX category II 1 G
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-50424-0da2ea152b8cbc8341e0e7304831e55d.pdf (PDF, 663.73 kB)
