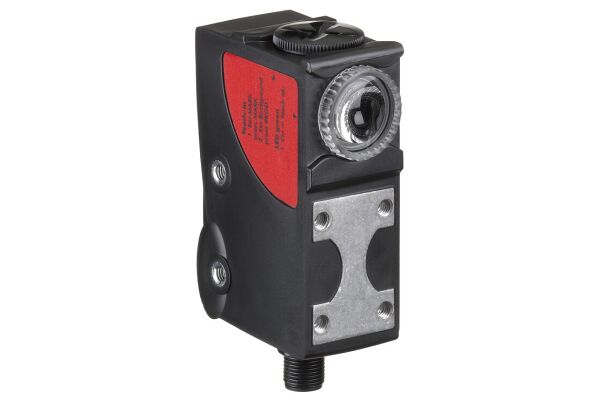

KRT21M-09.PL3/42-M12 Contrast sensor

KRT21M-09.PL3/42-M12
Contrast sensor with special versions for time function and pulse stretching, featuring an LED RGB light source and dual digital switching outputs.
  • SKU
    2110-50127841
  • Manufacturer code
    50127841
  • Number of semiconductor outputs with signalling function
    2
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Other
  • With blanking function
    false
  • Operation agent-safety class
    Safety class 2
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Width sensor
    31 mm
  • Height of sensor
    53 mm
  • Length of sensor
    80.1 mm
  • Setting procedure
    Teach-In
  • Construction type housing
    Cuboid
  • Laser protection class
    Other
  • No-load current
    0 mA
  • Type of light
    Multi-coloured LED
  • With fibre optics connection
    false
  • Switching frequency
    15000 Hz
  • Degree of protection (IP)
    IP67
  • Ambient temperature
    -10 - 55 °C
  • With exchange lens
    false
  • Material of optical surface
    Other
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • With time function
    false
  • Max. output current
    100 A
  • Special version
    Time function
  • Supplyoltage (V)
    10 ... 30
  • Switching frequency (Hz)
    15000
  • Operational controls
    Teach button
  • Operating range (m)
    0.009
  • Manufacturer Leuze

Product attachments

DS_KRT21M_en_50127871 (LINK)
