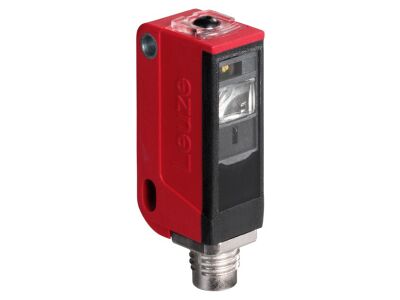

Compact contrast sensor with a time function and teach input, featuring a laser light source.

SKU

50148503
Manufacturer code

50148503
Number of semiconductor outputs with signalling function

1
Type of electric connection

Connector M8
Type of switching output

NPN
Type of switch function

Other
With blanking function

false
Operation agent-safety class

Safety class 3
Rated control supply voltage DC

12 - 30 V
Voltage type

DC
DC
DC
DC
Width sensor

11.4 mm
Height of sensor

34.2 mm
Length of sensor

18.3 mm
Setting procedure

Teach-In
Construction type housing

Cuboid
Laser protection class

Class 1
No-load current

0 mA
Type of light

Laser diode, red light
With fibre optics connection

false
Switching frequency

4000 Hz
Degree of protection (IP)

Other
Ambient temperature

-40 - 55 °C
With exchange lens

false
Material of optical surface

Plastic
Housing material

Plastic
Plastic
Plastic
Plastic
With time function

false
Max. output current

100 A
Most suitable applications

Precision sensing in automation systems Color mark detection on packaging lines Print registration and quality control
Special version

Teach input
Time function
Supplyoltage (V)

12 ... 30
Switching frequency (Hz)

4000
Operational controls

Teach button
Operating range (m)

0.06

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
