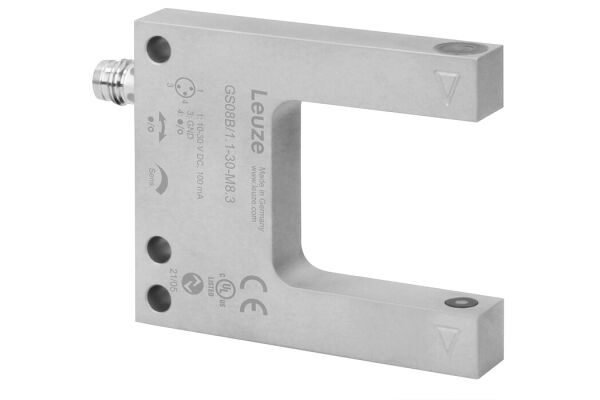

GS08B/1.1-30-M8.3 Fork photoelectric sensor

GS08B/1.1-30-M8.3
This fork photoelectric sensor uses an optical principle with a red LED light source and offers digital switching outputs. It features a push-pull transistor switching output and supports IO-Link for communication. The sensor is compact and easily connectable via an M8, 3-pin connector.
  • SKU
    50146191
  • Manufacturer code
    50146191
  • Suitable for safety functions
    false
  • Type of switch function
    Anticoincidence
  • Type of switching output
    PNP/NPN
  • Type of electric connection
    Connector M8
  • Number of semiconductor outputs with signalling function
    1
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Construction type housing
    Cuboid
  • Voltage type
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • Housing material
    Metal
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Setting procedure
    Manual adjustment
  • With time function
    false
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Operation agent-safety class
    Safety class 3
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Glass
  • Pre failure notice
    false
  • Type of light
    Polarity free red light
  • Material of cable sheath
    Other
  • With restart blockage
    false
  • Degree of protection (IP)
    IP67
  • Fork depth
    35
  • Fork width
    30
  • Rated switching distance
    30
  • Max. switching distance
    30
  • Max. output current
    100
  • Width sensor
    10
  • Height of sensor
    50
  • Length of sensor
    60
  • Min. reflector distance
    30
  • Response time
    0.1
  • Transmission range of the safety field
    0.03
  • Switching frequency
    5000
  • Wavelength of the sensor
    660
  • Ambient temperature
    -25 - 60
  • Rated control supply voltage DC
    10 - 30
  • Supplyoltage (V)
    10 ... 30
  • Voltage type
    DC
    DC
  • Switching frequency (Hz)
    5000
  • Mouth width (mm)
    30
  • Mouth depth (mm)
    35
  • Most suitable applications
    Industrial automation Object detection Positioning tasks
  • Interface
    IO-Link

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Leuze

Product attachments

DS_GS08B-1-1-30-M8-3_eng_50146191 (LINK)
