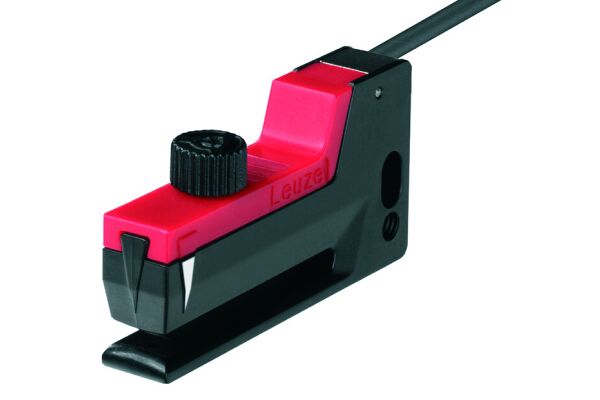

GS 61/6 Fork photoelectric sensor

GS 61/6
This fork photoelectric sensor uses optical principles for detecting non-transparent labels. It features a multiturn potentiometer for operational control.
  • SKU
    2110-50110769
  • Manufacturer code
    50110769
  • Width sensor
    11 mm
  • Height of sensor
    30 mm
  • Length of sensor
    60 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Anticoincidence
  • Type of switching output
    PNP/NPN
  • Type of electric connection
    Cable
  • Number of semiconductor outputs with signalling function
    1
  • Number of contact energized outputs with signalling function
    0
  • Number of protected semiconductor outputs
    0
  • Number of protected contact energized outputs
    0
  • Construction type housing
    Cuboid
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Switching frequency
    10000 Hz
  • With monitoring function downstream switching devices
    false
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Setting procedure
    Manual adjustment
  • Max. output current
    100 A
  • Ambient temperature
    -20 - 60 °C
  • Fork depth
    41 mm
  • Fork width
    3 mm
  • Rated switching distance
    3 mm
  • Max. switching distance
    3 mm
  • With time function
    false
  • With reflector
    false
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • With communication interface analogue
    false
  • With communication interface AS-Interface
    false
  • With communication interface CANOpen
    false
  • With communication interface DeviceNet
    false
  • With communication interface Ethernet
    false
  • With communication interface INTERBUS
    false
  • With communication interface PROFIBUS
    false
  • With communication interface RS-232
    false
  • With communication interface RS-422
    false
  • With communication interface RS-485
    false
  • With communication interface SSD
    false
  • With communication interface SSI
    false
  • Operation agent-safety class
    Safety class 3
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Min. reflector distance
    3 mm
  • Response time
    0.05 s
  • Transmission range of the safety field
    0.003 m
  • Pre failure notice
    false
  • Wavelength of the sensor
    940 nm
  • Type of light
    Infrared light
  • Material of cable sheath
    Other
  • With restart blockage
    false
  • Degree of protection (IP)
    IP65
  • Most suitable applications
    Detection of non-transparent labels
  • Supplyoltage (V)
    10 ... 30
  • Switching frequency (Hz)
    10000
  • Operational controls
    Multiturn potentiometer
  • Manufacturer Leuze

Product attachments

DS_GS61_en_50111253_P (LINK)
