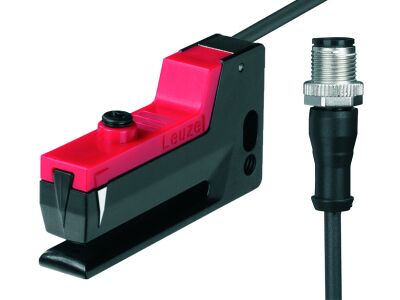

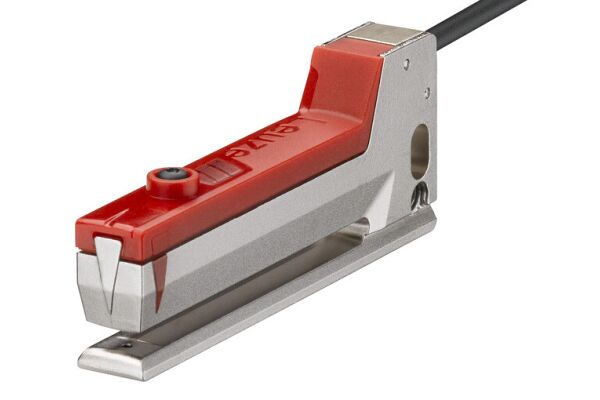

The fork photoelectric sensor detects non-transparent labels using optical principles. It features a teach input for easy configuration and uses an infrared LED as its light source.

SKU

50146327
Manufacturer code

50146327
Width sensor

11 mm
Height of sensor

30 mm
Length of sensor

80 mm
Suitable for safety functions

false
Type of switch function

Anticoincidence
Type of switching output

PNP/NPN
Type of electric connection

Cable
Number of semiconductor outputs with signalling function

1
Number of contact energized outputs with signalling function

0
Number of protected semiconductor outputs

0
Number of protected contact energized outputs

0
Construction type housing

Cuboid
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
Switching frequency

10000 Hz
With monitoring function downstream switching devices

false
Housing material

Metal
Plastic
Diecast zinc
Explosion safety category for gas

None
Explosion safety category for dust

None
Setting procedure

Teach-In
Max. output current

100 A
Ambient temperature

-20 - 60 °C
Fork depth

61 mm
Fork width

3 mm
Rated switching distance

3 mm
Max. switching distance

3 mm
With time function

false
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Operation agent-safety class

Safety class 3
Sensing mode

Light-/dark switching
Material of optical surface

Plastic
Min. reflector distance

3 mm
Response time

0.05 s
Transmission range of the safety field

0.003 m
Pre failure notice

false
Wavelength of the sensor

940 nm
Type of light

Infrared light
Material of cable sheath

Other
With restart blockage

false
Degree of protection (IP)

IP67
Most suitable applications

Detection of non-transparent labels
Supplyoltage (V)

10 ... 30
Switching frequency (Hz)

10000
Operational controls

Teach button
Special version

Teach input

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
