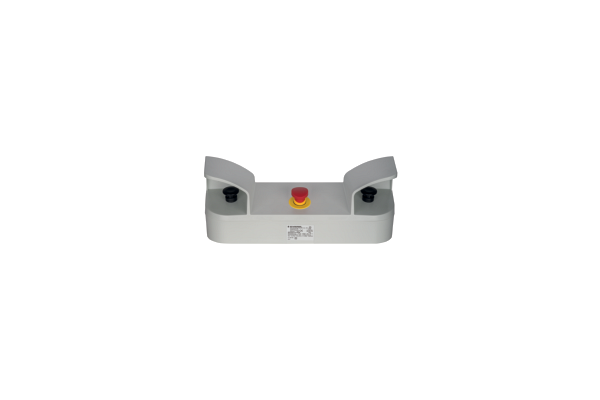

Thermoplastic enclosure
2 black operating buttons (positioning parts) Ø 55
1 Emergency Stop button in thermoplastic version
Stand and wall mounting possible
2 part enclosure

SKU

4250116202812
Manufacturer code

101027371
Current, Thermal test current

10 A
Current, Utilisation category AC-15

8 A
Current, Utilisation category DC-13

5 A
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

10000000 Operations
Depth, General

137 mm
Height, General

185 mm
Width, General

469 mm
Electrical data, Cable section, maximum

1.5 mm²
Electrical data, Utilisation category

DC-13
AC-15
Housing material

Plastic
Standard, standards

EN IEC 60947-5-1
EN ISO 13850
EN IEC 60947-1
EN ISO 13851
EN IEC 60947-5-5
Note, General

Optional: actuators with low actuating force
8 knockouts for additional operating devices Ø 22.3 mm
1 NO/1 NC contact per unit, 1 NO/1 NC contact for Emergency-
Number, NC contacts

1
Number, NO contacts

1
Number, Operating push buttons (positioning parts)

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
Recommendation, product combination

SRB201ZH
SRB200ZHX1
SRB 201ZHX3
Review, general dimensions (length, width, height, etc.)

Operating push buttons (positioning parts): 55 mm
Emergency stop pushbutton: 38.5 mm
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4250116202812
SAP, product group

Initial
SAP, gross weight

1900.000 g
SAP, net weight

1900.000 g
Voltage, rated insulation voltage

440 V
Voltage, Utilisation category AC-15

250 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Construction kit possible

Yes
Selection (Yes/No), Suitable for EMERGENCY-OFF

Yes
Number, Emergency Stop buttons

1
