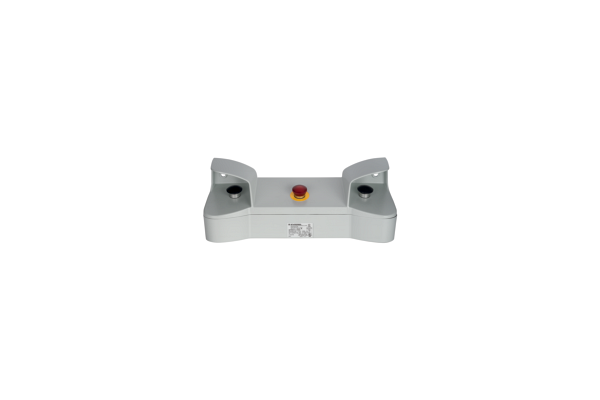

Emergency Stop button in metal version Ø 38,5 mm
2 black operating buttons (positioning parts) Ø 42 mm in Metal filmdesign
light alloy die-casting
2 part enclosure
Stand and wall mounting possible
Ergonomic operation
The terminal blocks and relay can be mounted in the inner part
Operating panel suitable for at least 8 additional command devices and indicator lights
Holes drilled under the cover and central hole Ø = 22,3mm

SKU

4250116202874
Manufacturer code

101172764
Current, Thermal test current

10 A
Current, Utilisation category AC-15

8 A
Current, Utilisation category DC-13

5 A
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

10000000 Operations
Depth, General

160 mm
Height, General

184 mm
Width, General

494 mm
Electrical data, Cable section, maximum

1.5 mm²
Electrical data, Utilisation category

DC-13
AC-15
Housing material

Aluminium
Material, enclosure coating

powder-coated
Standard, standards

EN IEC 60947-5-1
EN ISO 13850
EN IEC 60947-1
EN ISO 13851
EN IEC 60947-5-5
Note, General

Optional: actuators with low actuating force
1 NO/1 NC contact per unit, 1 NO/1 NC contact for Emergency-
Central part suitable for fitting of up to 10 additional com
Number, NC contacts

2
Number, NO contacts

2
Number, Operating push buttons (positioning parts)

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
Recommendation, product combination

SRB201ZH
SRB200ZHX1
SRB 201ZHX3
Review, general dimensions (length, width, height, etc.)

Operating push buttons (positioning parts): 42 mm
Emergency stop pushbutton: 38.5 mm
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4250116202874
SAP, product group

Initial
SAP, gross weight

4300.000 g
SAP, net weight

4300.000 g
Voltage, rated insulation voltage

440 V
Voltage, Utilisation category AC-15

250 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Construction kit possible

Yes
Note, Number, Emergency Stop button

Consisting of: EDP42SW; EF10.1; EF03.1
Consisting of: EDRR40RT; EFR; EF303.1
Selection (Yes/No), Suitable for EMERGENCY-OFF

Yes
Number, Emergency Stop buttons

1

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
