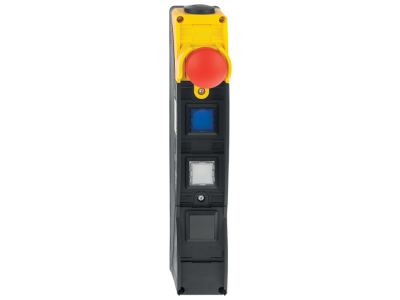

BDF100-NHK-G-ST Enabling device

BDF100-NHK-G-ST
Emergency stop latching pushbutton with Protective collar
Thermoplastic enclosure
slender shock-proof enclosure
to be fitted to commercial-off-the-shelf aluminium profiles
to be installed at an ergonomic favourable position
large range of Illuminated pushbuttons, Selector switches, LED indicator lights, Key-operated selector switches and Emergency-Stop buttons
Field labelling with separate plastic cover
  • SKU
    4030661448435
  • Manufacturer code
    101211974
  • Type of Execution, for degree of pollution VDE 0100
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Depth, General
    69 mm
  • Height, General
    99 mm
  • Width, General
    40 mm
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Standard, climatic stress
    DIN EN 60068
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661448435
  • SAP, product group
    Initial
  • SAP, gross weight
    150.000 g
  • SAP, net weight
    150.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +65 °C
  • Temperature, ambient temperature, maximum
    65 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Selection (Yes/No), Emergency-Stop button
    Yes
  • Selection (Yes/No), Protective collar in housing cover
    Yes
  • CAD, traceparts, product ID
    69-06122012-076344
  • Colour, upper part of the enclosure
    Yellow
  • Type of Execution, Overvoltage category VDE 0100
    3
  • Number, NC contacts
    2
  • Number, NO contacts
    1
  • Type of electric connection
    Connector plug M12, 8-pole

Product attachments

file-26616-746b412cc33ff82f03dcd059efd7accd.pdf (PDF, 705.14 kB)
