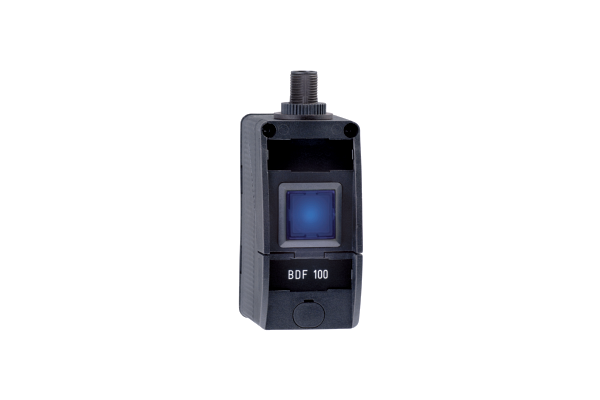

Illuminated pushbutton
Thermoplastic enclosure
slender shock-proof enclosure
to be fitted to commercial-off-the-shelf aluminium profiles
to be installed at an ergonomic favourable position
large range of Illuminated pushbuttons, Selector switches, LED indicator lights, Key-operated selector switches and Emergency-Stop buttons
Field labelling with separate plastic cover

SKU

4030661448404
Manufacturer code

101216402
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Depth, General

69 mm
Height, General

99 mm
Width, General

40 mm
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, climatic stress

DIN EN 60068
Standard, standards

EN IEC 60947-5-1
EN IEC 60947-1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661448404
SAP, product group

Initial
SAP, gross weight

110.000 g
SAP, net weight

110.000 g
Temperature, Ambient temperature[generated product variant]

-25 ... +65 °C
Temperature, ambient temperature, maximum

65 °C
Temperature, ambient temperature, minimum

-25 °C
Web Type

Product range
CAD, traceparts, product ID

69-06122012-076344
Colour, upper part of the enclosure

Black
Type of Execution, Overvoltage category VDE 0100

3
Number, NC contacts

1
Number, NO contacts

1
Type of electric connection

Connector plug M12, 8-pole
Selection (Yes/No), Traceparts

Yes

Manufacturer Schmersal
