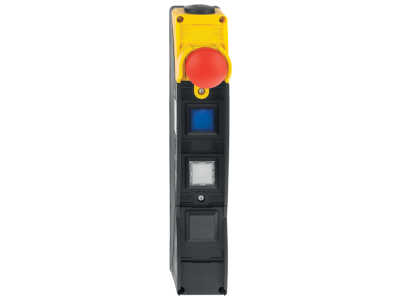

slender shock-proof thermoplastic enclosure
to be installed at an ergonomic favourable position
to be fitted to commercial-off-the-shelf aluminium profiles
Thermoplastic enclosure
slender shock-proof enclosure
large range of Illuminated pushbuttons, Selector switches, LED indicator lights, Key-operated selector switches and Emergency-Stop buttons
Emergency stop, on/off and reset functions available
The position of the pushbuttons on the control panel can be freely selected.
Field labelling with separate plastic cover
Freely installable button caps for an optimal adaptation to the plants

SKU

4030661582368
Manufacturer code

101211797
Colour, indicator lamp

without (Blanking plug, black)
Current, Thermal test current

2.5 A
Current, Utilisation category AC-15

2 A
Current, Utilisation category DC-13

1 A
Type of Execution, Cable entry

M20 cable gland
Type of Execution, Terminals, mechanical

Removable screw terminals
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, General

Assembly housing
Type of Execution, IP Protection class, General

IP65
Design, Mechanical Life, Command devices

1000000 Operations
Design, Mechanical Life, Emergency-Stop button

100000 Operations
Type of execution, mounting

interior mounting holes
Type of execution, mounting, Screws

2x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of Execution, Position of the cable gland

bottom
Switching principle

Slow action
cross-point-system
Depth, General

249 mm
Diameter, Wire cross-section,

0.5 mm<sup>2</sup>
Diameter, Cable cross-section of the cable glands, maximum

13 mm
Diameter, Cable cross-section of the cable glands, minimum

6 mm
Height, General

69 mm
Stroke, Actuating stroke

3 mm
Width, General

40 mm
Electrical data, External wiring and device fuse rating

2.5A T
Electrical data, Suitable for low-voltages

≥ 5 V / ≥ 1 mA
Electrical data, Utilisation category

DC-13
AC-15
Actuating force, maximum

8 N
Material, contacts, electrical

Ag-Ni 10, gold-plated
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, climatic stress

DIN EN 60068
Standard, standards

EN IEC 60947-5-1
EN IEC 60947-5-5
EN ISO 13850
EN IEC 60947-1
Note, Force, Actuating Force

each contact
Note, Ordering data

Notice: see ordering code
Note, tightening torque, cable gland

Miaximum tightening cable gland cap nut 3 Nm
Note, applications

Suitable for 40 mm profiles
Number, cable wires, electrical

16
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
Review, Resistance to vibrations to EN 60068-2-6

10 … 100 Hz, with 20 g
Review, restistance to shock

100 g / 6 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661582368
SAP, product group

Initial
SAP, gross weight

280.000 g
SAP, net weight

280.000 g
Temperature, Ambient temperature[generated product variant]

-25 ... +65 °C
Temperature, ambient temperature, maximum

65 °C
Temperature, ambient temperature, minimum

-25 °C
Time, Switching frequency

1200 /h
Torque, tightening torque, cable gland, maximum

4 Nm
Torque, tightening torque, screw, housing cover, maximum

0.8 Nm
Torque, tightening torque, screw, housing cover, minimum

0.7 Nm
Voltage, Rated impulse withstand voltage

2.5 kV
Voltage, rated insulation voltage

250 VAC
Voltage, rated operating voltage

24 VDC
Voltage, Utilisation category AC-15

24 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Removable Terminals

Yes
Selection (Yes/No), Emergency-Stop button

Yes
Selection (Yes/No), Safety functions

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
