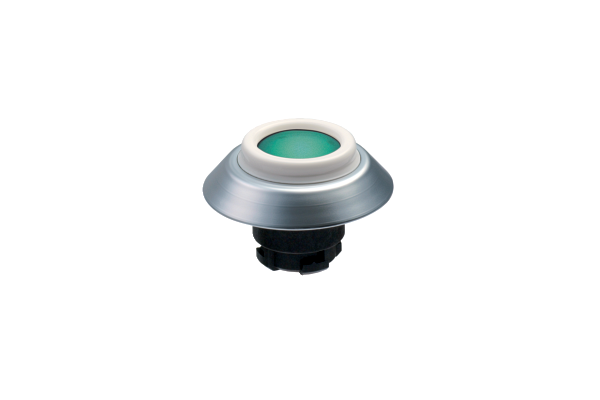

NDLGN Push button

NDLGN
hygienic design
Protection class IP69K
Mounting hole 22.3 mm
  • SKU
    4250116200481
  • Manufacturer code
    101163547
  • Colour of the front ring
    Silver
  • Colour of the operating element
    Green
  • Type of Execution, construction form
    Tactile
  • Type of execution
    Illuminated pushbutton
  • Type of Execution, IP Protection class, General
    IP67
    IP69K
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Type of execution, mounting
    Mounting flange ELM
  • Design, Sealing
    Lip gaskets
    Membrane
  • Diameter, hole, mounting diameter
    22.3 mm
  • Diameter, total
    44.5 mm
  • Diameter, Touch surface
    27 mm
  • Distance, Grid dimensions [mm]
    50 x 50 mm
  • Height, General
    11 mm
  • Stroke, Actuating stroke
    5 mm
  • Thickness, Front panel, maximum
    6 mm
  • Thickness, Front panel, minimum
    1.5 mm
  • Force, actuating force, approx.
    1.5 N
  • Material, operators
    ABS
  • Material, front ring
    ABS, chrome-plated
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • PIM maintenance status
    Discharge "Online catalog"
  • Review, restistance to shock
    30 g / 18 ms
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4250116200481
  • SAP, product group
    Initial
  • SAP, gross weight
    30.000 g
  • SAP, net weight
    30.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Switching frequency
    1000 /h
  • Tightening torque, tightening torque, screw
    0.6 Nm
  • Web Type
    Product range
  • Selection (Yes/No), Full insulation
    Yes
  • Selection (Yes/No), Mounting flange
    Yes
  • Selection (Yes/No), Probing possible
    Yes
  • PNV, standard, certificates
    cULus
    BG
  • Tolerance, absolute
    0.4
  • Selection (Yes/No), illuminable
    Yes
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Diameter, Front ring
    44.5 mm
  • Selection (Yes/No), Traceparts
    Yes
  • Colour of the bellows
    White
  • Number of contact elements, maximum
    2
