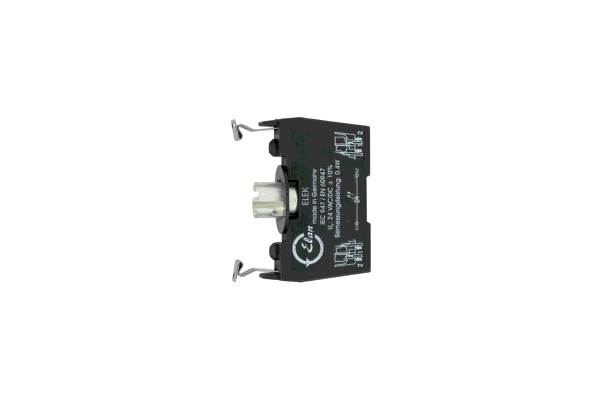

ELEK Push button

ELEK
Print with LED symbol
  • SKU
    4030661463797
  • Manufacturer code
    101167368
  • Type of Execution, construction form
    Light element with Ba9S socket
  • Type of execution
    Luminaire element
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661463797
  • SAP, product group
    Initial
  • SAP, gross weight
    20.000 g
  • SAP, net weight
    20.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Type of application, Installation instructions
    pluggable
  • Type of Execution, IP Protection class, clips or terminals
    IP20
  • Design, Position, Mounting flange
    3
  • Depth, General
    51 mm
  • Length, General
    46 mm
  • Width, General
    10 mm
  • Electrical data, Cable section, maximum
    2 x 1.5 mm²
  • Electrical data, Cable section, minimum
    2 x 0.08 mm²
  • Electrical data, Contact labelling
    X1 - X2
  • Type of electric connection
    Cage clamp
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Note, LED switching conditions display
    Supply voltage UB: 24 VAC/DC
  • Note, General Data, General
    Print with LED symbol
  • Voltage, rated operating voltage
    24 VAC
  • Voltage, rated operating voltage
    24 VDC
  • Note, included in delivery, number and type
    Illuminants have to be purchased optionally
