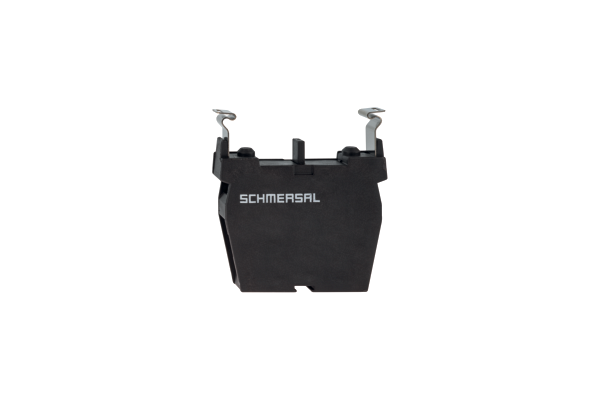

EF102.2 Command device accesory

EF102.2
Screw connection
Mounting flange position 2
31-32; 43-44 (Contact labelling)
  • SKU
    4030661605128
  • Manufacturer code
    101176094
  • Type of application, Installation instructions
    pluggable
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    8 A
  • Current, Utilisation category DC-13
    5 A
  • Type of Execution, IP Protection class, Switch rooms
    IP40
  • Type of Execution, IP Protection class, clips or terminals
    IP20
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Design, Position, Mounting flange
    1
    2
    3
  • Type of Execution, Switching principle
    Slow action
  • Depth, General
    60 mm
  • Distance, Contact opening
    2 mm
  • Length, General
    46 mm
  • Path, positive break travel
    2 mm
  • Width, General
    10 mm
  • Electrical data, Cable section, maximum
    2.5 mm², rigid
    1.5 mm², flexible
  • Electrical data, Cable section, minimum
    0.5 mm², rigid
    0.5 mm², flexible
  • Electrical data, Contact labelling
    31-32
    43-44
  • Electrical data, Max. fuse rating
    10 A gG D-fuse slow blow
  • Electrical data, Suitable for low-voltages
    ≥ 5 V / ≥ 3.2 mA
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Material, contacts, electrical
    Silver
  • Material, housing
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, time, bounce duration
    Bounce duration at an Actuating speed of 100mm/s
  • Number, NC contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
  • Type of Execution, Switching element
    NC contact, NO contact
  • Review, restistance to shock
    110 g / 4 ms
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661605128
  • SAP, product group
    Initial
  • SAP, gross weight
    20.000 g
  • SAP, net weight
    20.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, Bounce duration, maximum
    5 ms
  • Time, Switching frequency
    1200 /h
  • Voltage, rated insulation voltage
    400 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Number, NO contacts
    1
  • Hinweis, Delivery capacity
    Phased-out product

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
