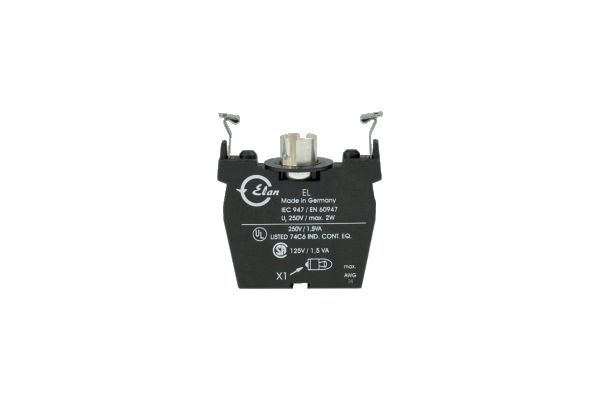

EL Push button

EL
Print with incandescent lamp symbol
  • SKU
    4250116201068
  • Manufacturer code
    101006553
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-1
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4250116201068
  • SAP, product group
    Initial
  • SAP, gross weight
    20.000 g
  • SAP, net weight
    20.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • PNV, standard, certificates
    CCC
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Type of application, Installation instructions
    pluggable
  • Type of Execution, IP Protection class, clips or terminals
    IP20
  • Design, Position, Mounting flange
    3
  • Depth, General
    60 mm
  • Length, General
    46 mm
  • Width, General
    10 mm
  • Electrical data, Cable section, maximum
    2.5 mm², rigid
    1.5 mm², flexible
  • Electrical data, Cable section, minimum
    0.5 mm², rigid
    0.5 mm², flexible
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Note, LED switching conditions display
    Supply voltage UB: 24 VAC/DC
  • Torque, tightening torque, screw, mounting, maximum
    1 Nm
