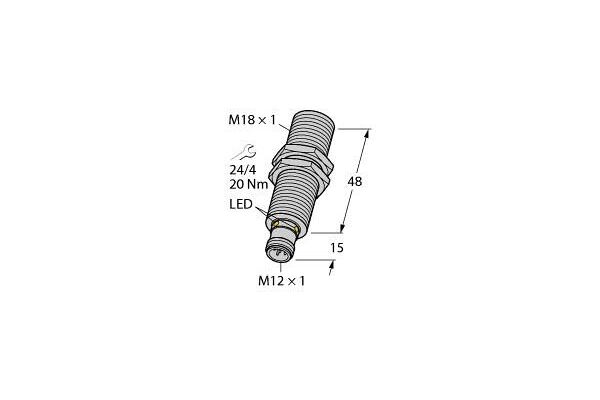

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 200 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Temperature compensation, Blind zone: 2.5 cm, Range: 20 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±15 °, 1 × switching output, PNP, Teachable settings, NO/NC programmable

SKU

4047101439830
Manufacturer code

100000558
Length of sensor

63 mm
Ambient temperature

-25 - 70 °C
Supply voltage

15 - 30 V
Switching frequency

12.5 Hz
Diameter sensor

18 mm
Measuring range length

25 - 200 mm
No-load current

50 mA
Relative repeat accuracy

0.15 %
Relative linearity deflection

0.5 %
Type of electric connection

Plug-in connection
Type of switching output

PNP
Type of switch function

Programmable/configurable
Setting procedure

Other
Construction type housing

Cylinder, screw-thread
Material active area of sensor

Plastic
Housing material

Other
Connector gender

male
NO/NC

NO/NC contacts
Switching output

PNP

Manufacturer Turck
