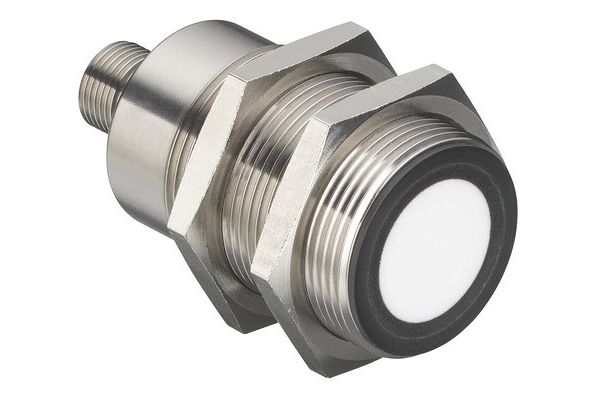

Special version: Synchronous operation, Multiplex operation; Opening angle: 14 °; Measurement range: 300 ... 3,000 mm; Geometric resolution: 1.0 mm; Supply voltage: 18 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Analog output: Current; Switching output: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN); Interface: IO-Link; Connection: Connector, M12, 4 -pin; Design: Cylindrical, M30; Dimensions: 60 mm; Housing material: Metal

SKU

50149549
Manufacturer code

50149549
Type of electric connection

Connector M12
Type of switching output

PNP/NPN
Length of sensor

60 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Ambient temperature

-25 - 70 °C
Supply voltage

18 - 30 V
Switching frequency

3 Hz
Voltage type

DC
DC
DC
DC
Housing material

Other
Metal
Synchronisation possible

false
Diameter sensor

30 mm
Degree of protection (IP)

IP67
Material of cable sheath

Other
Standard for interfaces

Other
No-load current

45 mA
Max. output current

100 A
Relative repeat accuracy

0.07 %
Supplyoltage (V)

18 ... 30
Design

Cylindrical
Special version

Multiplex operation
Synchronous operation
Interface

IO-Link
Analog output

Current
Measurement range (mm)

300 ... 3000

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
