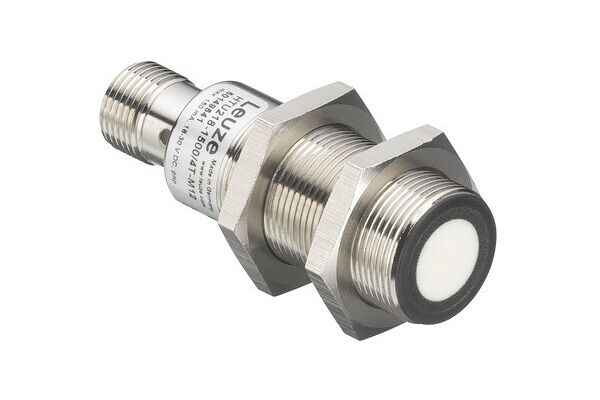

Special version: Multiplex operation, Synchronous operation; Opening angle: 16 °; Measurement range: 150 ... 1,500 mm; Geometric resolution: 1.0 mm; Supply voltage: 18 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Analog output: Voltage; Switching output: Transistor, Push-pull, IO-Link / light switching (PNP)/dark switching (NPN); Interface: IO-Link; Connection: Connector, M12, 4 -pin; Design: Cylindrical, M18; Dimensions: 55 mm; Housing material: Metal

SKU

50149546
Manufacturer code

50149546
Type of electric connection

Connector M12
Type of switching output

PNP/NPN
Length of sensor

55 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Ambient temperature

-25 - 70 °C
Supply voltage

18 - 30 V
Switching frequency

5 Hz
Voltage type

DC
DC
DC
DC
Housing material

Other
Metal
Synchronisation possible

false
Diameter sensor

18 mm
Degree of protection (IP)

IP67
Material of cable sheath

Other
Standard for interfaces

Other
No-load current

40 mA
Max. output current

150 A
Relative repeat accuracy

0.07 %
Supplyoltage (V)

18 ... 30
Design

Cylindrical
Most suitable applications

Ideal for applications requiring precise distance measurement and synchronization between multiple units.
Special version

Multiplex operation
Synchronous operation
Interface

IO-Link
Analog output

Voltage
Measurement range (mm)

150 ... 1500

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
