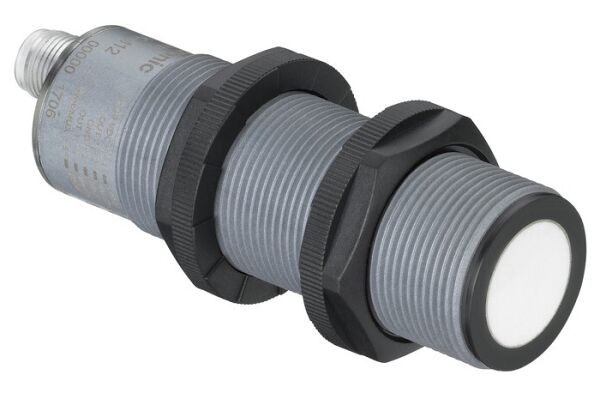

Special version: Multiplex operation, Synchronous operation; Opening angle: 7 °; Measurement range: 250 ... 3,500 mm; Geometric resolution: 5 mm; Supply voltage: 12 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Analog output: Current; Switching output: Transistor, NPN, NO (normally open); Inputs/outputs: 1 Piece(s); Connection: Connector, M12, 5 -pin; Design: Cylindrical, M30; Dimensions: 98.8 mm; Housing material: Plastic; Operational controls: Control buttons

SKU

2110-50136115
Manufacturer code

50136115
Type of electric connection

Connector M12
Type of switching output

NPN
Type of switch function

Normally open contact (NO)
Blind zone

250 mm
Length of sensor

98.8 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder plain
Ambient temperature

-20 - 70 °C
Supply voltage

12 - 30 V
Switching frequency

2 Hz
Voltage type

DC
DC
DC
DC
Housing material

Plastic
Plastic
Plastic
Plastic
Synchronisation possible

false
Diameter sensor

30 mm
Type of analogy output

0 mA ... 20 mA / 4 mA ... 20 mA
Adjustable distance

250 - 3500 mm
Measuring range length

250 - 3500 mm
No-load current

50 mA
Max. output current

100 A
Relative repeat accuracy

0.5 %
Material active area of sensor

Plastic
Relative linearity deflection

1 %
Supplyoltage (V)

12 ... 30
Design

Cylindrical
Operational controls

Control buttons
Special version

Multiplex operation
Synchronous operation
Analog output

Current
Measurement range (mm)

250 ... 3500
Inputs/outputs (pcs)

1

Manufacturer Leuze
