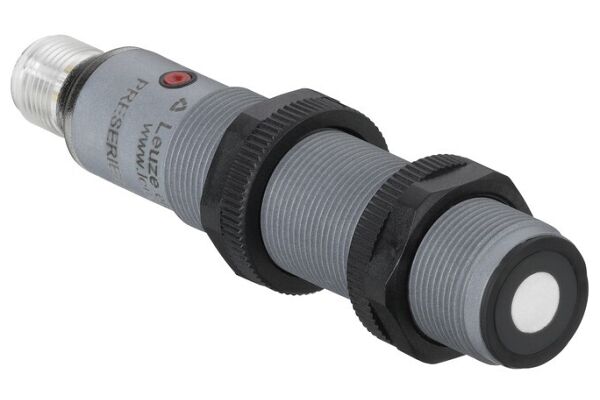

Special version: 2 independent switching outputs, Multiplex operation, Synchronous operation; Operating range: 0.15 ... 1.6 m; Direction of beam: Front; Opening angle: 8 °; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor, NPN, NO (normally open); Switching output 2: Transistor, NPN, NC (normally closed); Inputs/outputs: 1 Piece(s); Switching frequency: 2 Hz; Connection: Connector, M12, 5 -pin; Design: Cylindrical, M18; Dimensions: 18 mm x 91.6 mm; Housing material: Plastic; Operational controls: Control buttons

SKU

2110-50136089
Manufacturer code

50136089
Type of electric connection

Connector M12
Type of switching output

NPN
Type of switch function

Normally open contact (NO)
Length of sensor

91.6 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder, screw-thread
Ambient temperature

-20 - 70 °C
Supply voltage

10 - 30 V
Switching frequency

2 Hz
Voltage type

DC
DC
DC
DC
Housing material

Plastic
Plastic
Plastic
Plastic
Synchronisation possible

false
Diameter sensor

18 mm
Degree of protection (IP)

IP67
Material of cable sheath

Other
No-load current

50 mA
Max. output current

100 A
Relative repeat accuracy

0.5 %
Material active area of sensor

Plastic
Relative linearity deflection

1 %
Supplyoltage (V)

10 ... 30
Design

Cylindrical
Switching frequency (Hz)

2
Operational controls

Control buttons
Direction of beam

Front
Special version

Multiplex operation
2 independent switching outputs
Synchronous operation
Inputs/outputs (pcs)

1
Operating range (m)

0.15 ... 1.6

Manufacturer Leuze
