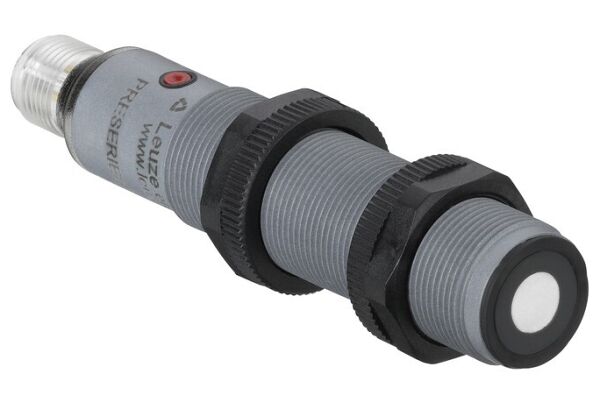

Operating range: 0 ... 1.6 m; Direction of beam: Front; Opening angle: 8 °; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor, PNP, NO (normally open); Switching frequency: 1 Hz; Connection: Connector, M12, 4 -pin; Design: Cylindrical, M18; Dimensions: 18 mm x 91.6 mm; Housing material: Plastic; Operational controls: Control buttons

SKU

2110-50136096
Manufacturer code

50136096
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Normally open contact (NO)
Length of sensor

91.6 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cylinder plain
Ambient temperature

-20 - 70 °C
Supply voltage

10 - 30 V
Switching frequency

1 Hz
Voltage type

DC
DC
DC
DC
Housing material

Plastic
Plastic
Plastic
Plastic
Synchronisation possible

false
Diameter sensor

18 mm
No-load current

50 mA
Max. output current

100 A
Relative repeat accuracy

0.5 %
Material active area of sensor

Ceramics
Supplyoltage (V)

10 ... 30
Design

Cylindrical
Switching frequency (Hz)

1
Operational controls

Control buttons
Direction of beam

Front
Most suitable applications

Object detection within a specified range Industrial automation tasks
Operating range (m)

0 ... 1.6

Manufacturer Leuze
