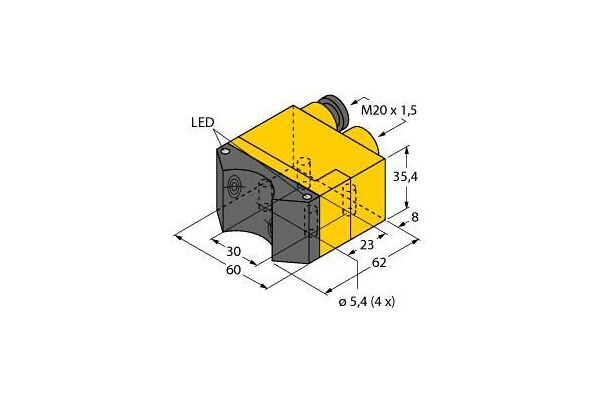

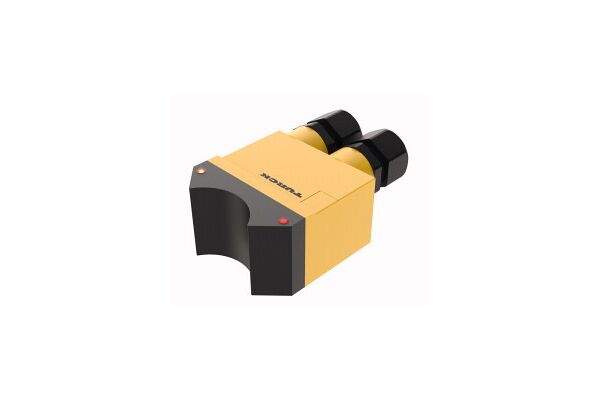

NI4-DSU35TC-2AP4X2/3GD Inductive Sensor, For Rotary Actuators

NI4-DSU35TC-2AP4X2/3GD

Inductive Sensor, For Rotary Actuators, Operating voltage 10…65 VDC, Rated switching distance 4 mm, Non-flush, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Two outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, 2 × NO contact, PNP output, DC 4-wire, 10…65 VDC, Terminal chamber, ATEX category II 3 G, Ex zone 2, ATEX category II 3 D, Ex zone 22

  • SKU
    4047101076042
  • Manufacturer code
    1569911
  • Length of sensor
    62 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    4 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    PNP
  • Type of electric connection
    Clamp
  • Type of actuation
    Metallic Target
  • Coating housing
    Other
  • SIL according to IEC 61508
    None
  • Performance level according to EN ISO 13849-1
    None
  • Supply voltage
    10 - 65 V
  • Voltage type
    DC
  • Switching frequency
    50 Hz
  • Compression-resistant
    false
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Width sensor
    60 mm
  • Height of sensor
    35.4 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Flush / Non-flush
    Non-flush
  • Atex category
    ATEX category II 3 D
    ATEX category II 3 G
  • Manufacturer Turck

Product attachments

file-49521-bf6b728ff989e348bca2f5f07876efd6.pdf (PDF, 1.14 MB)
