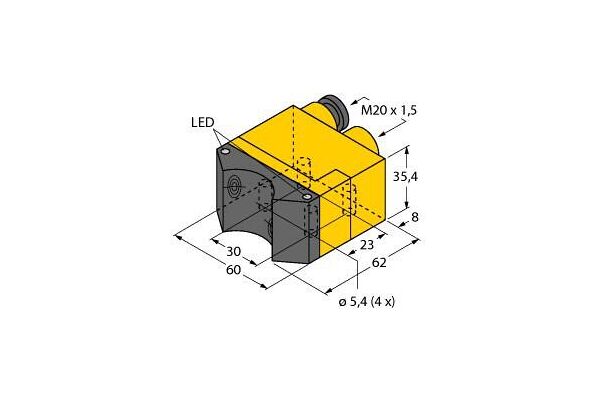

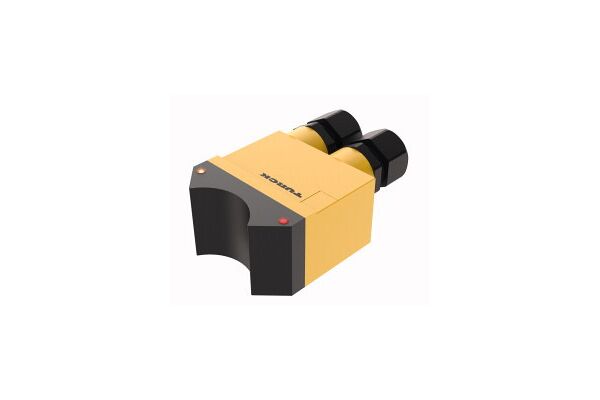

NI4-DSU35TC-2AD4X2 Inductive Sensor, For Rotary Actuators

NI4-DSU35TC-2AD4X2

Inductive Sensor, For Rotary Actuators, Operating voltage 10…65 VDC, Rated switching distance 4 mm, Non-flush, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Two outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, DC 2-wire, 10…65 VDC, 2 x NO contact, Terminal chamber

  • SKU
    4047101096644
  • Manufacturer code
    4430130
  • Length of sensor
    62 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    4 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    2-wire
  • Type of electric connection
    Clamp
  • Type of actuation
    Metallic Target
  • Coating housing
    Other
  • Supply voltage
    10 - 65 V
  • Voltage type
    DC
  • Switching frequency
    50 Hz
  • Compression-resistant
    false
  • Width sensor
    60 mm
  • Height of sensor
    35.4 mm
  • Housing material
    Plastic
  • Flush / Non-flush
    Non-flush
  • Manufacturer Turck

Product attachments

file-47546-081f4e6789f7764c823719d21e6f459f.pdf (PDF, 1.13 MB)
