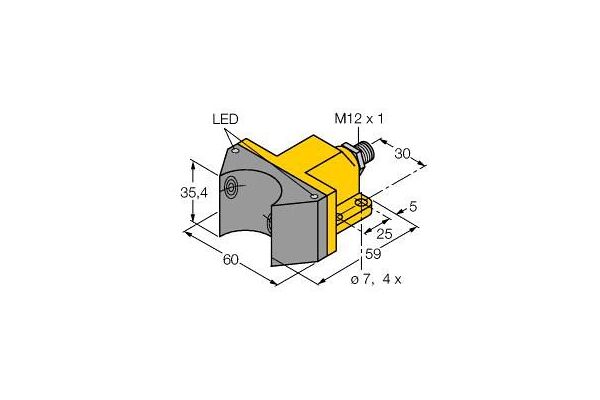

NI4-DSU35-2AP4X2-H1141 Inductive Sensor, For Rotary Actuators

NI4-DSU35-2AP4X2-H1141

Inductive Sensor, For Rotary Actuators, Operating voltage 10…65 VDC, Rated switching distance 4 mm, Non-flush, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Two outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, 2 x NO contact, PNP output, DC 4-wire, 10…65 VDC, M12 x 1 male connector

  • SKU
    4047101075946
  • Manufacturer code
    1569901
  • Length of sensor
    59 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    4 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    PNP
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Coating housing
    Other
  • Supply voltage
    10 - 65 V
  • Voltage type
    DC
  • Switching frequency
    50 Hz
  • Compression-resistant
    false
  • Width sensor
    60 mm
  • Height of sensor
    35.4 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Flush / Non-flush
    Non-flush
  • Connector gender
    male
  • Manufacturer Turck

Product attachments

file-34794-1359cf487f26dd40fef23f1aaf3f58fb.pdf (PDF, 424.96 kB)
