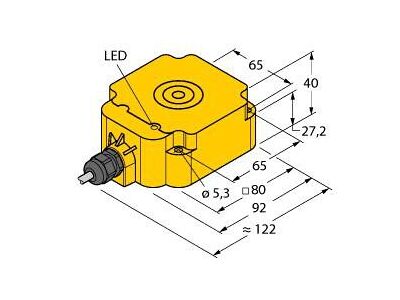

BI50U-Q80-VP4X2-H1141/3GD Inductive Sensor, With Extended Switching Distance

BI50U-Q80-VP4X2-H1141/3GD

Inductive Sensor, With Extended Switching Distance, Operating voltage 10…65 VDC, Rated switching distance 50 mm, Flush, Rectangular, height 40 mm, Active face on top, Plastic, PBT‐GF30‐V0, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, M12 x 1 male connector, ATEX category II 3 G, Ex zone 2, ATEX category II 3 D, Ex zone 22

  • SKU
    4047101074765
  • Manufacturer code
    1562004
  • Length of sensor
    92 mm
  • Flush / Non-flush
    Concise
  • Switching distance
    50 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Change-over contact
  • Type of switching output
    PNP
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • SIL according to IEC 61508
    None
  • Performance level according to EN ISO 13849-1
    None
  • Supply voltage
    10 - 65 V
  • Voltage type
    DC
  • Switching frequency
    250 Hz
  • Compression-resistant
    false
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 3G
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 3D
  • Width sensor
    80 mm
  • Height of sensor
    40 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Flush / Non-flush
    Flush
  • Connector gender
    male
  • Atex category
    ATEX category II 3 D
    ATEX category II 3 G
  • Manufacturer Turck

Product attachments

file-31882-0b44487b830b3bf769e217a6a0e2924b.pdf (PDF, 280.87 kB)
