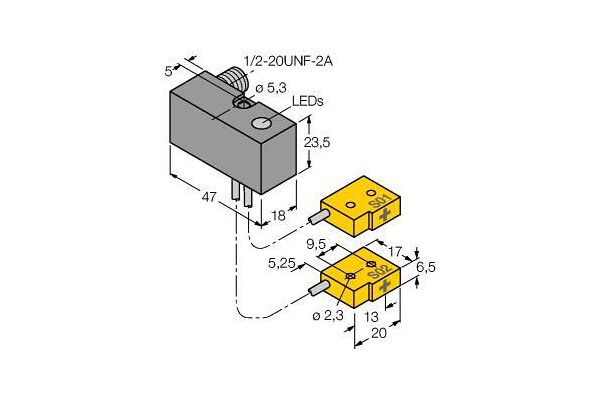

NI2-Q6.5-ADZ32-0.16-FSB5.4X4/S304 Inductive Sensor, Monitoring Kit for Power Clamps

NI2-Q6.5-ADZ32-0.16-FSB5.4X4/S304

Inductive Sensor, Monitoring Kit for Power Clamps, Operating voltage 20…250 VAC / 10…300 VDC, Rated switching distance 2 mm, Non-flush, Cable length 0.16 m, Rectangular, height 23.5 mm, Plastic, PBT‐GF20‐V0, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, AC 4-wire, 20…250 VDC, DC 4-wire, 10…300 VDC, 2 x NO contact, 1/2" male connector

  • SKU
    4047101092271
  • Manufacturer code
    4200203
  • Length of sensor
    47 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    2 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    2-wire
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Special construction
  • Supply voltage
    20 - 250 V
  • Voltage type
    AC/DC
  • Switching frequency
    20 Hz
  • Compression-resistant
    false
  • Width sensor
    18 mm
  • Height of sensor
    23.5 mm
  • Housing material
    Metal
  • Flush / Non-flush
    Non-flush
  • Connector gender
    male
  • Cable length (m)
    0.16
  • Manufacturer Turck

Product attachments

file-31283-2d85eb886626be11e6b3b091cca20287.pdf (PDF, 223.63 kB)
