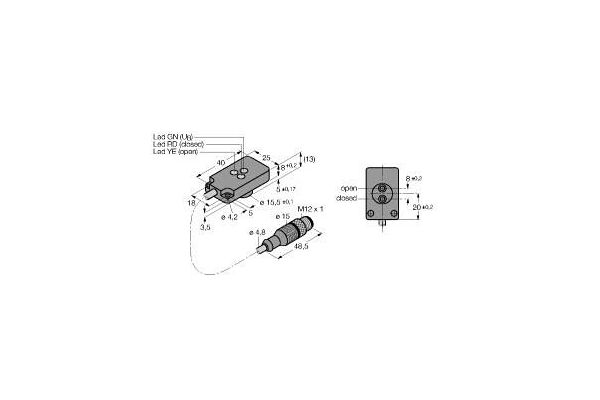

NI1.5-KS13A-2AP6X3-0.2-RS4.4T/S34 Inductive Sensor (Axial), Monitoring Kit for Power Clamps

NI1.5-KS13A-2AP6X3-0.2-RS4.4T/S34

Inductive Sensor (Axial), Monitoring Kit for Power Clamps, Operating voltage 10…30 VDC, Rated switching distance 1.5 mm, Non-flush, Cable length 0.2 m, Compact power clamp monitoring KS13A with two sensors and LEDs, Active face, axial, Plastic, PBT-GF20-V0, yellow, Mounting holes with stainless steel sleeves, Cable: Irradiation crosslinked PUR, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, 2 x NO contact, PNP output, DC 4-wire, 10…30 VDC

  • SKU
    4047101096590
  • Manufacturer code
    4430120
  • Length of sensor
    40 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    1.5 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    PNP
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Special construction
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
  • Switching frequency
    500 Hz
  • Compression-resistant
    false
  • Width sensor
    25 mm
  • Height of sensor
    13 mm
  • Housing material
    Metal
  • Type of switching output
    PNP
  • Flush / Non-flush
    Non-flush
  • Cable length (m)
    2
  • Manufacturer Turck

Product attachments

file-31271-3e88bc6c3e7f454a10d56c12b4ea95d6.pdf (PDF, 154.37 kB)
