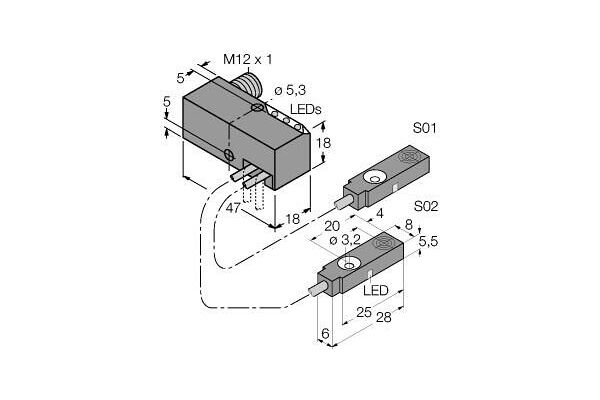

BI2-Q5.5-0.27-BS-2AP6X3-H1141/S34 Inductive Sensor, Monitoring Kit for Power Clamps

BI2-Q5.5-0.27-BS-2AP6X3-H1141/S34

Inductive Sensor, Monitoring Kit for Power Clamps, Operating voltage 10…30 VDC, Rated switching distance 2 mm, Flush, Cable length 0.27 m, Power block with two connected sensors and LEDs, Relocatable block 0°…90°, with cross drilling for flexible cable routing, Plastic, PBT‐GF20‐V0, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, 2 x NO contact, PNP output, DC 4-wire, 10…30 VDC

  • SKU
    4047101078558
  • Manufacturer code
    1613006
  • Length of sensor
    47 mm
  • Flush / Non-flush
    Concise
  • Switching distance
    2 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Normally open contact
  • Type of switching output
    PNP
  • Type of electric connection
    Plug-in connection
  • Type of actuation
    Metallic Target
  • Construction type housing
    Special construction
  • Supply voltage
    10 - 30 V
  • Voltage type
    DC
  • Switching frequency
    30 Hz
  • Compression-resistant
    false
  • Width sensor
    18 mm
  • Height of sensor
    18 mm
  • Housing material
    Metal
  • Type of switching output
    PNP
  • Flush / Non-flush
    Flush
  • Cable length (m)
    0.27
  • Manufacturer Turck

Product attachments

file-33005-e9efaff60fde45d02091ec84f0ff1e9f.pdf (PDF, 263.71 kB)
