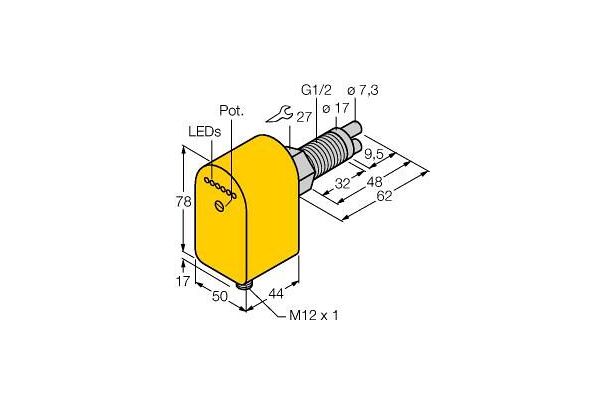

FCS-GL1/2A2P-LIX-H1141/A Flow Monitoring, Immersion Sensor with Integrated Processor

FCS-GL1/2A2P-LIX-H1141/A

Flow Monitoring, Immersion Sensor with Integrated Processor, Operating voltage 19.2…28.8 VDC, Immersion sensor, Sensor for gaseous media, Calorimetric principle, Adjustments via potentiometer, DC 3-wire, 19.2…28.8 VDC, 4…20 mA analog output, Connector device, M12 × 1

  • SKU
    4047101174076
  • Manufacturer code
    6870455
  • Measurement principle
    Thermal
  • Type of process connection
    Thread connection
  • Compressive strength measuring head
    30 bar
  • Type of electric connection
    Plug-in connection
  • Ambient temperature for evaluation electronic
    -20 - 70 °C
  • Rated control supply voltage Us at DC
    19.2 - 28.8 V
  • Voltage type for actuating
    DC
  • Adjustable setting value for flow for gases
    0.5 - 30 m/s
  • Manufacturer Turck

Product attachments

file-56045-1a6f02b8f05e53c98142f7d67d229365.pdf (PDF, 161.45 kB)
