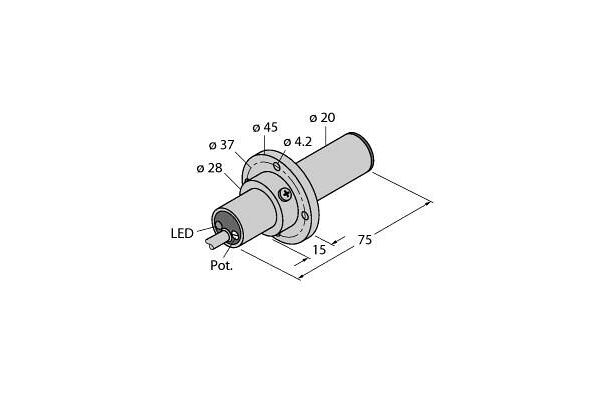

FCS-K20-LIX Flow Monitoring, Immersion Sensor with Integrated Processor

FCS-K20-LIX

Flow Monitoring, Immersion Sensor with Integrated Processor, Operating voltage 19.2…28.8 VDC, Immersion sensor, Cable length 2 m, Flow sensor for gaseous media, Calorimetric principle, Adjustment via potentiometer, Mounting flange, plastic, included, LED "power on" indication, Plastic sensor housing, DC 3-wire, 19.2…28.8 VDC, 4…20 mA analog output

  • SKU
    4047101175073
  • Manufacturer code
    6870703
  • Measurement principle
    Thermal
  • Type of process connection
    Flange connection
  • Compressive strength measuring head
    1 bar
  • Type of electric connection
    Other
  • Ambient temperature for evaluation electronic
    -20 - 70 °C
  • Rated control supply voltage Us at DC
    19.2 - 28.8 V
  • Voltage type for actuating
    DC
  • Adjustable setting value for flow for gases
    0.5 - 15 m/s
  • Cable length (m)
    2
  • Manufacturer Turck

Product attachments

file-54276-1d87aab0b36d3cbb53b2b11fb27b0816.pdf (PDF, 130.97 kB)
