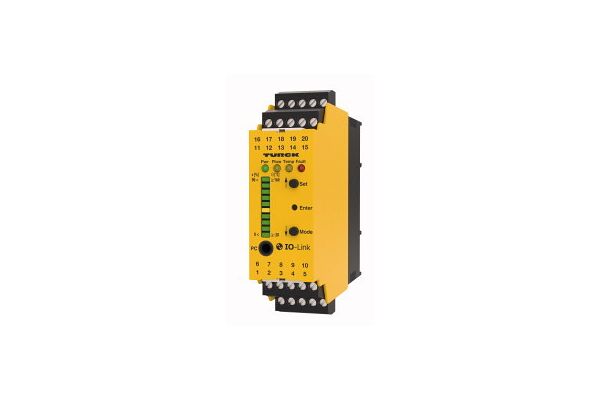

FM-IM-3UR38X Flow Monitoring, For the Connection of FCS and FCI Product Series Flow Sensors

FM-IM-3UR38X

Flow Monitoring, For the Connection of FCS and FCI Product Series Flow Sensors, IO-Link Device With Relay Outputs, Operating voltage 20…250 VAC / 20…125 VDC, Relay output for flow, temperature and faults, Adjustment of switchpoint, no teaching of flow boundaries (QuickTeach), LED band for indication of flow speed and media temperature, Monitoring of operating and display range, Detection of wire-break and short-circuit on the sensor side, Standard IO or IO-Link operating mode, Parametrized via pushbutton or software-supported via IO-Link

  • SKU
    4047101260557
  • Manufacturer code
    7525102
  • Type of electric connection
    Other
  • Ambient temperature for evaluation electronic
    -25 - 70 °C
  • Rated control supply voltage Us at DC
    20 - 125 V
  • Voltage type for actuating
    AC/DC
  • Rated control supply voltage Us at AC 50HZ
    20 - 250 V
  • Rated control supply voltage Us at AC 60HZ
    20 - 250 V
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-50500-b744cf7f106e34bf12e6d77ba62b3d91.pdf (PDF, 1.18 MB)
