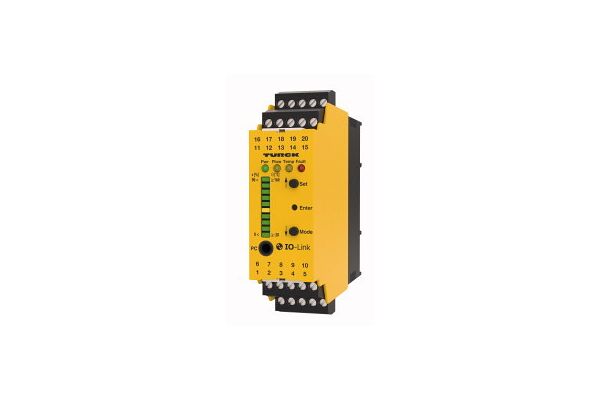

FM-IM-2UPLI63FX Flow Monitoring, For the Connection of FP Product Series Flow Sensors, IO-Link D

FM-IM-2UPLI63FX

Flow Monitoring, For the Connection of FP Product Series Flow Sensors, IO-Link Device with Current and Transistor Outputs, Operating voltage 20…30 VDC, Analog output for flow, Transistor switching outputs for temperature and faults, Teaching upper and lower flow limit, LED band for indication of flow rate and media temperature, Monitoring of operating and display range, Detection of wire-break and short-circuit on the sensor side, Standard IO or IO-Link operating mode, Parametrized via pushbutton or software-supported via IO-Link

  • SKU
    4047101443493
  • Manufacturer code
    100000819
  • Type of electric connection
    Other
  • Ambient temperature for evaluation electronic
    -25 - 70 °C
  • Rated control supply voltage Us at DC
    20 - 30 V
  • Voltage type for actuating
    DC
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-34586-80b2bbc6e3beb13ae8971c3c55c9a391.pdf (PDF, 1.19 MB)
