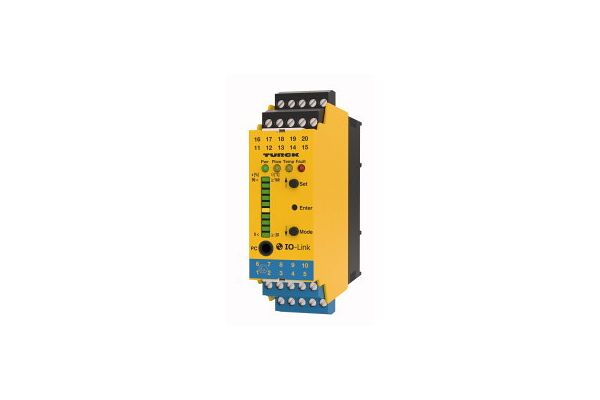

FMX-IM-3UP63X Flow Monitoring, For the Connection of FCS/FCI Product Series Ex Flow Sensors (N

FMX-IM-3UP63X

Flow Monitoring, For the Connection of FCS/FCI Product Series Ex Flow Sensors (NAEX), IO-Link Device with Transistor Outputs, Operating voltage 20…30 VDC, For Ex ia resp. Ex ib sensors, Transistor outputs for flow, temperature and faults, Adjustment of switchpoint, no teaching of flow boundaries (QuickTeach), LED band for indication of flow speed and media temperature, Monitoring of operating and display range, Detection of wire-break and short-circuit on the sensor side, Standard IO or IO-Link operating mode, Parametrized via pushbutton or software-supported via IO-Link, Associated equipment [Ex ia Ga/Da], Connection of flow probes Zone 0/20

  • SKU
    4047101260540
  • Manufacturer code
    7525101
  • Type of electric connection
    Other
  • Ambient temperature for evaluation electronic
    -25 - 70 °C
  • Rated control supply voltage Us at DC
    20 - 30 V
  • Voltage type for actuating
    DC
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-43240-0385ffbbfba42b4edeea1e4c753f7e50.pdf (PDF, 1.22 MB)
