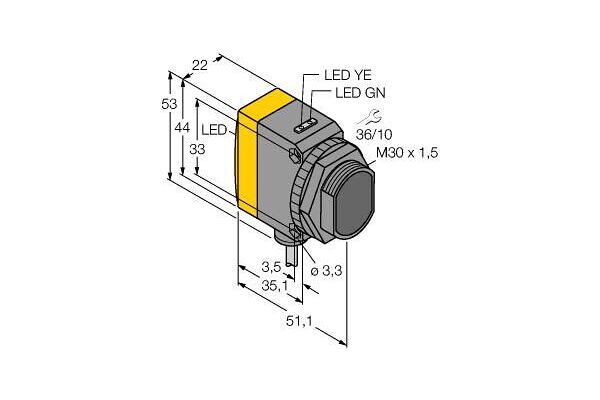

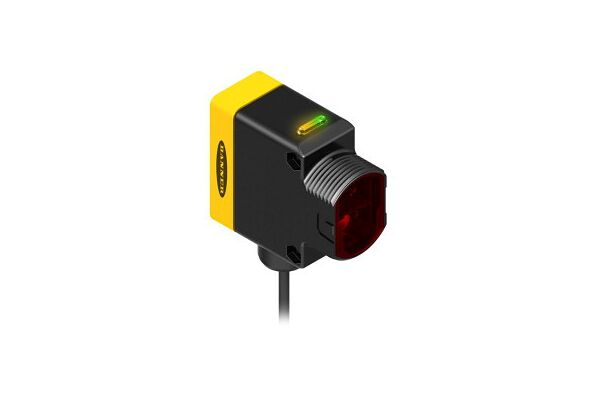

QS30EXSH2O Photoelectric Sensor, Opposed Mode Sensor (Emitter), For Water Detection

QS30EXSH2O

Photoelectric Sensor, Opposed Mode Sensor (Emitter), For Water Detection, Operating voltage 10…30 VDC, Max. range 8000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Selectable operating frequency, protection against crosstalk, Emitter LED, switchable, Operating voltage: 10…30 VDC

  • SKU
    0662488832988
  • Manufacturer code
    3083298
  • Setting procedure
    Other
  • Type of electric connection
    Cable
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    53 mm
  • Length of sensor
    54.3 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    10 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    8000 mm
  • Max. switching distance
    8000 mm
  • Wavelength of the sensor
    1450 nm
  • Type of light
    Infrared light
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
