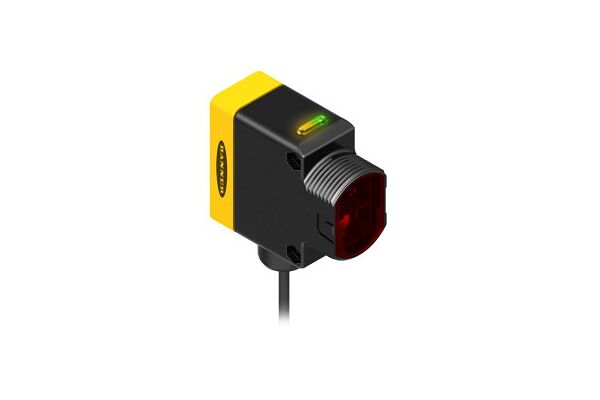

QS30ARXH2O Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detectio

QS30ARXH2O

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detection, Operating voltage 10…30 VDC, Max. range 4000 mm, Cable length 2 m, Cable, PVC, 9 m, Protection class IP67, LED all-round visible, Selectable operating frequency, protection against crosstalk, Operating voltage: 10…30 VDC, Switching output, bipolar, light operation

  • SKU
    0662488791735
  • Manufacturer code
    3079173
  • Setting procedure
    Other
  • Type of electric connection
    Cable
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    53 mm
  • Length of sensor
    54.3 mm
  • Sensing mode
    Light switching
    Light switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    1 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    4000 mm
  • Max. switching distance
    4000 mm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-40325-9a609ff3cb469843d1b427f748ad0b0f.pdf (PDF, 646.18 kB)
