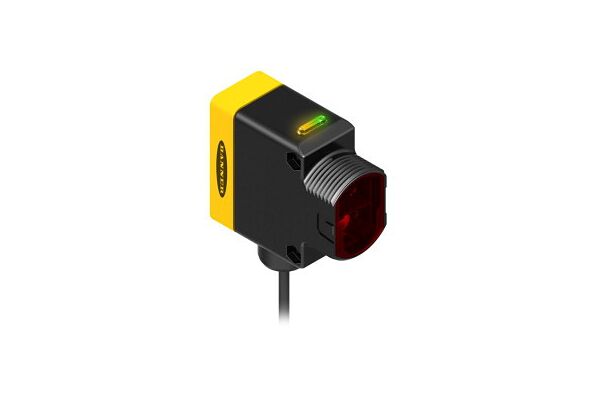

QS30RXH2OU Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detectio

QS30RXH2OU

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detection, Operating voltage 10…30 VDC, Max. range 4000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Selectable operating frequency, protection against crosstalk, Operating voltage: 15…30 VDC, Analog output, 0…10 V

  • SKU
    0662488791797
  • Manufacturer code
    3079179
  • Setting procedure
    Other
  • Type of electric connection
    Cable
  • Type of switching output
    Other
  • Construction type housing
    Cuboid

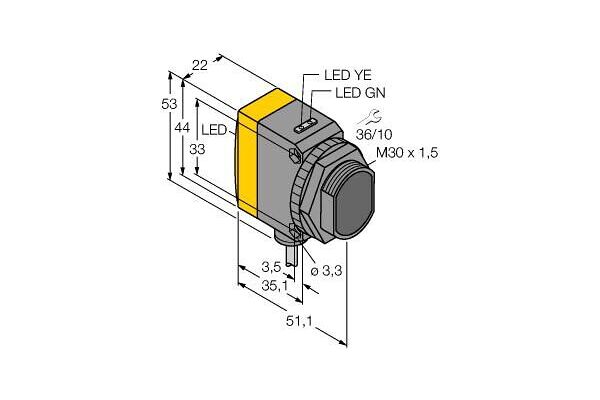

  • Width sensor
    22 mm
  • Height of sensor
    53 mm
  • Length of sensor
    54.3 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    25 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    4000 mm
  • Max. switching distance
    4000 mm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-34282-b91a567a6dfb43d0708745330f8a4952.pdf (PDF, 608.37 kB)
