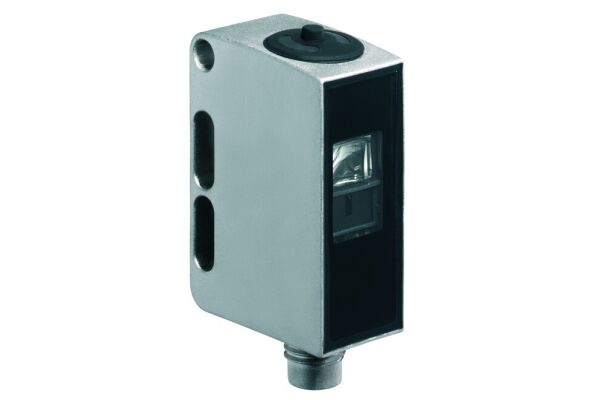

This contrast sensor features a teach input and time function, ideal for precise detection tasks. It operates efficiently with a white LED light source and offers flexibility with light/dark switchable outputs.

SKU

2110-50110602
Manufacturer code

50110602
Number of semiconductor outputs with signalling function

1
Type of electric connection

Connector M12
Type of switching output

PNP
Type of switch function

Other
With blanking function

false
Operation agent-safety class

Safety class 3
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
Width sensor

14 mm
Height of sensor

35.5 mm
Length of sensor

25 mm
Setting procedure

Teach-In
Construction type housing

Cuboid
Laser protection class

Other
No-load current

0 mA
Type of light

White light
With fibre optics connection

false
Switching frequency

10000 Hz
Degree of protection (IP)

IP67
Ambient temperature

-30 - 55 °C
With exchange lens

false
Material of optical surface

Other
Housing material

Stainless steel
Stainless steel
Stainless steel
Stainless steel
With time function

false
Most suitable applications

Precise detection tasks
Special version

Teach input
Time function
Supplyoltage (V)

10 ... 30
Switching frequency (Hz)

10000
Operational controls

Teach button
Operating range (m)

0.013
