Photoelectric Sensor, Color Sensor, With Switching Output, Operating voltage 18…30 VDC, Max. range 150 mm, Protection classes IP67/IP69, M12 × 1 male, 5-pin, Range: 18…32 mm, Three PNP/NPN switching outputs and IO-Link, Stores and compares up to seven colors

SKU

0662488050795
Manufacturer code

3806614
Type of electric connection

Connector M12
Type of switching output

PNP/NPN
Type of switch function

Normally open contact (NO)
Type of light

White light
Material of optical surface

Plastic
Construction type housing

Cuboid

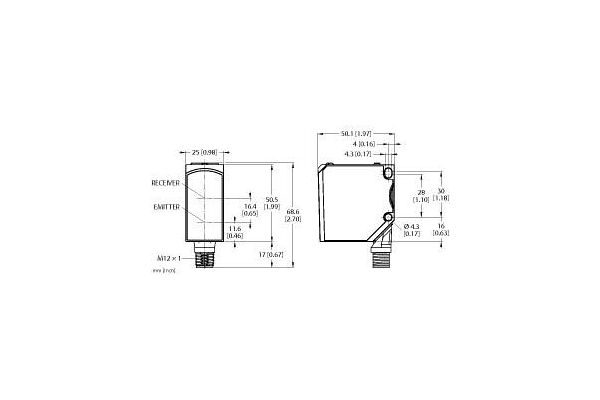

Width sensor

25 mm
Height of sensor

50.5 mm
Length of sensor

50 mm
Ambient temperature

-20 - 55 °C
Degree of protection (IP)

IP67
No-load current

60 mA
Housing material

Zinc
Connector gender

male
Type of switching output

PNP/NPN
Network protocol

IO-link

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
