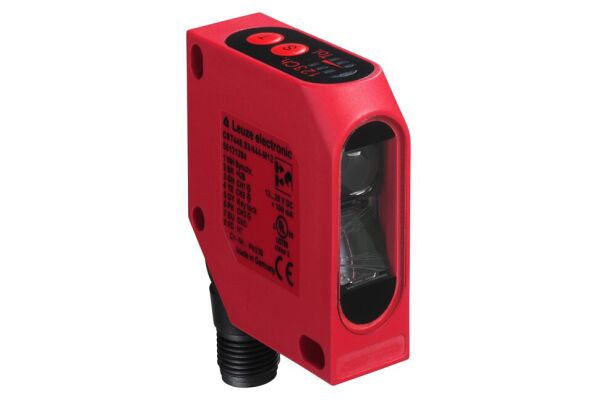

CRT 448.S3/222-M12 Color sensor

CRT 448.S3/222-M12
This color sensor features a synchronization input and operates within a range of 12 to 32 mm. It uses a white LED light source and has a supply voltage of 12 to 28 V DC. The sensor includes three digital switching outputs and connects via an M12, 8-pin connector. It has compact dimensions and a plastic housing.
  • SKU
    2110-50121293
  • Manufacturer code
    50121293
  • Rated control supply voltage DC
    12 - 28 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Switching frequency
    500 Hz
  • Type of electric connection
    Connector M12
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • Type of switching output
    NPN
  • Type of switch function
    Other
  • Measuring process for colour detection
    Active tristimulus method
  • Type of light
    Multi-coloured LED
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Material of optical surface
    Other
  • Construction type housing
    Cuboid
  • Width sensor
    17 mm
  • Height of sensor
    50 mm
  • Length of sensor
    50 mm
  • Operation agent-safety class
    Safety class 2
  • With blanking function
    false
  • With fibre optics connection
    false
  • With exchange lens
    false
  • With time function
    false
  • Ambient temperature
    -10 - 55 °C
  • Degree of protection (IP)
    IP67
  • Special version
    Synchronization input
  • Supplyoltage (V)
    12 ... 28
  • Operating range (m)
    0.012 ... 0.032
  • Manufacturer Leuze

Product attachments

DS_CRT448_en_50121262_P (LINK)
