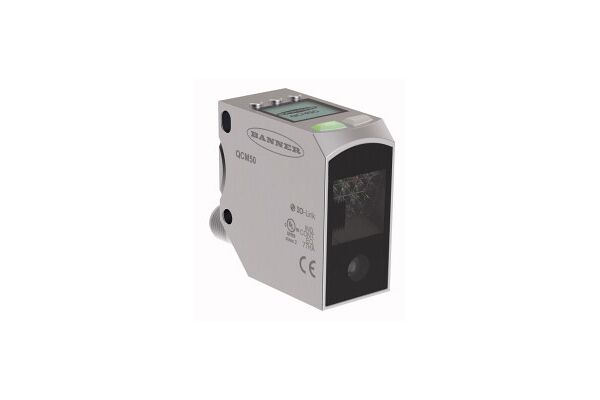

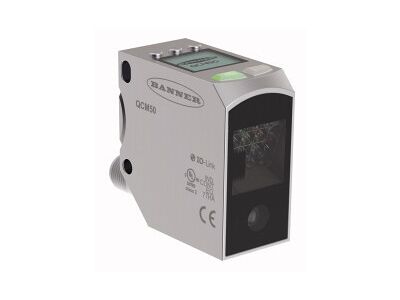

QCM50-K3D40-Q8-5 Photoelectric Sensor, Color Sensor, With Switching Output

QCM50-K3D40-Q8-5

Photoelectric Sensor, Color Sensor, With Switching Output, Operating voltage 18…30 VDC, Max. range 60 mm, Protection classes IP67/IP69, M12 × 1 male, 5-pin, Range: 18…60 mm, Narrow light spot, Three PNP/NPN switching outputs and IO-Link, Stores and compares up to seven colors

  • SKU
    0662488050825
  • Manufacturer code
    3806617
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Type of light
    White light
  • Material of optical surface
    Plastic
  • Construction type housing
    Cuboid

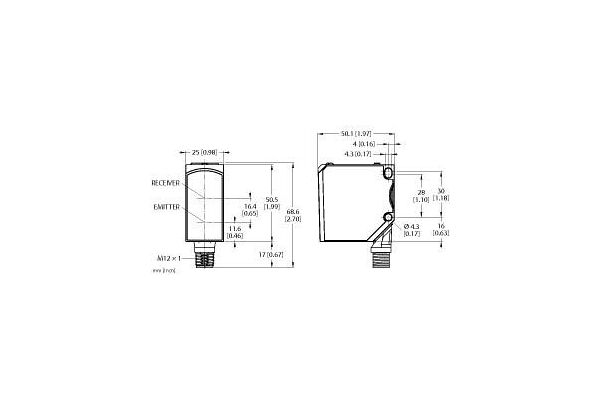

  • Width sensor
    25 mm
  • Height of sensor
    50.5 mm
  • Length of sensor
    50 mm
  • Ambient temperature
    -20 - 55 °C
  • Degree of protection (IP)
    IP67
  • No-load current
    60 mA
  • Housing material
    Zinc
  • Connector gender
    male
  • Type of switching output
    PNP/NPN
  • Network protocol
    IO-link

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-43236-fd754fc5b4e536a734ea022fe726ad96.pdf (PDF, 39.45 kB)
