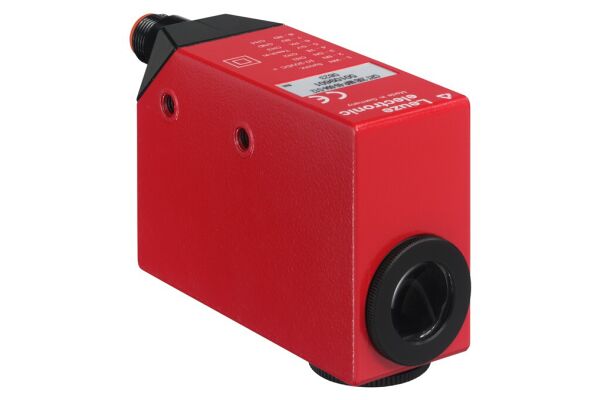

CRT 20B M/P-12-004-S12 Color sensor

CRT 20B M/P-12-004-S12
This color sensor features autocollimation and a teach input, suitable for precise color detection.
  • SKU
    2110-50109600
  • Manufacturer code
    50109600
  • Rated control supply voltage DC
    10 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • Switching frequency
    3500 Hz
  • Type of electric connection
    Connector M12
  • Analogue output 0 V ... 10 V
    false
  • Analogue output 0 mA ... 20 mA
    false
  • Analogue output 4 mA ... 20 mA
    false
  • Analogue output -10 V ... +10 V
    false
  • With other analogue output
    false
  • Type of switching output
    PNP
  • Type of switch function
    Other
  • Measuring process for colour detection
    Active tristimulus method
  • Type of light
    Multi-coloured LED
  • Housing material
    Zinc
    Metal
  • Material of optical surface
    Glass
  • Construction type housing
    Cuboid
  • Width sensor
    30 mm
  • Height of sensor
    80 mm
  • Length of sensor
    53 mm
  • Operation agent-safety class
    Safety class 2
  • With blanking function
    false
  • With fibre optics connection
    false
  • With exchange lens
    false
  • With time function
    false
  • Ambient temperature
    -10 - 55 °C
  • Degree of protection (IP)
    IP67
  • Special version
    Autocollimation
    Teach input
  • Supplyoltage (V)
    10 ... 30
  • Operating range (m)
    0.0095 ... 0.0155
  • Manufacturer Leuze

Product attachments

DS_CRT20B_en_50109619 (LINK)
