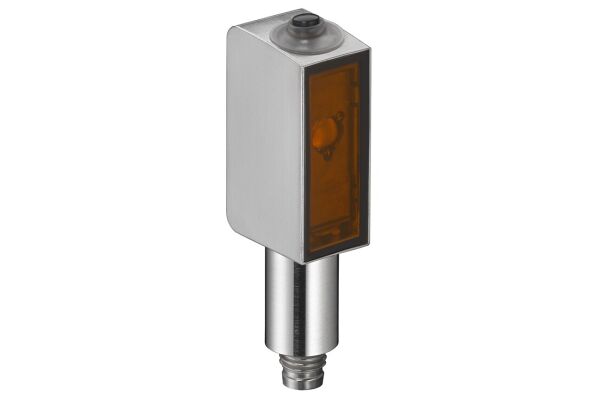

This is a polarized retro-reflective photoelectric sensor designed for detecting transparent films and highly transparent bottles. It features autocollimation and HYGIENE design with a teach input.

SKU

50150673
Manufacturer code

50150673
Pre failure notice

false
With time function

false
Rated switching distance

400 mm
Max. switching distance

400 mm
Max. output current

100 A
With reflector

false
Analogue output 0 V ... 10 V

false
Analogue output 0 mA ... 20 mA

false
Analogue output 4 mA ... 20 mA

false
Analogue output -10 V ... +10 V

false
With other analogue output

false
With communication interface analogue

false
With communication interface AS-Interface

false
With communication interface CANOpen

false
With communication interface DeviceNet

false
With communication interface Ethernet

false
With communication interface INTERBUS

false
With communication interface PROFIBUS

false
With communication interface RS-232

false
With communication interface RS-422

false
With communication interface RS-485

false
With communication interface SSD

false
With communication interface SSI

false
Number of semiconductor outputs with signalling function

1
Number of protected semiconductor outputs

0
Type of electric connection

Connector M8
Type of switching output

Other
Type of switch function

Anticoincidence
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Width sensor

14 mm
Height of sensor

35.4 mm
Length of sensor

20.4 mm
Sensing mode

Light-/dark switching
Material of optical surface

Other
Housing material

Metal
Stainless steel
Min. reflector distance

0 mm
Ambient temperature

-40 - 70 °C
Response time

0.17 s
Switching frequency

3000 Hz
Rated control supply voltage DC

10 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
Laser protection class

Class 1
Wavelength of the sensor

650 nm
Type of light

Laser diode, red light
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP68
Setting procedure

Teach-In
Most suitable applications

Detection of transparent films Detection of highly transparent bottles
Special version

Autocollimation
Teach input
HYGIENE design
Supplyoltage (V)

10 ... 30
Construction type housing

Cubic
Ambient temperature, operation (°C)

-40 ... 70
Operating range limit (m)

0 ... 0.5
Operational controls

Teach button
Interface

IO-Link

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
