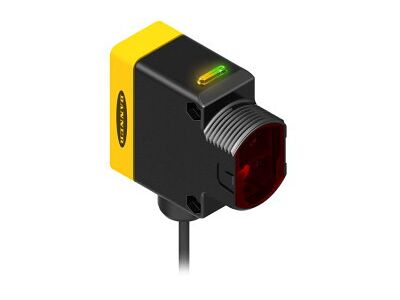

QS30VR3FF400QPMA16 Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

QS30VR3FF400QPMA16

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 24…250 VAC / 12…250 VDC, Max. range 400 mm, Cable length 0.15 m, Cable with male end M12 × 1, 5-pin, PUR, 150 mm, Protection class IP67, LED all-round visible, Operating voltage: 12…250 VDC or 24…250 VAC, Relay output, changeover

  • SKU
    0662488730758
  • Manufacturer code
    3073075
  • Type of electric connection
    Connector 1/2 inch
  • Type of switching output
    Relay contact
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    44 mm
  • Length of sensor
    51.5 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    15 s
  • Switching frequency
    250 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyurethane (PUR)
  • Rated switching distance
    400 mm
  • Max. switching distance
    400 mm
  • Diameter sensor
    30 mm
  • Adjustment range
    0 - 400 mm
  • Housing material
    Plastic
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck
