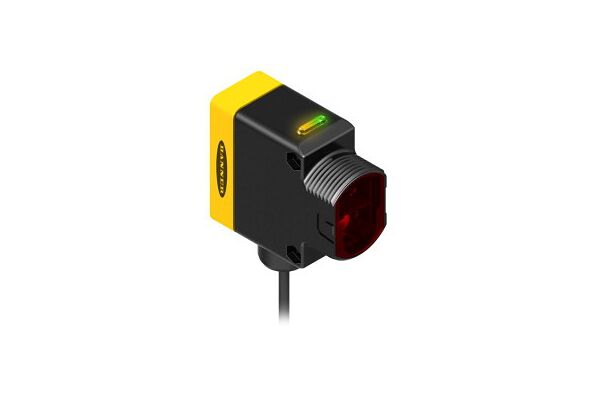

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 24…250 VAC / 12…250 VDC, Max. range 400 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Operating voltage: 12…250 VDC or 24…250 VAC, Relay output, changeover

SKU

0662488730741
Manufacturer code

3073074
Type of electric connection

Cable
Type of switching output

Relay contact
Type of switch function

Changeover contact (NO/NC)
Construction type housing

Cuboid
Width sensor

22 mm
Height of sensor

44 mm
Length of sensor

51.5 mm
Material of optical surface

Plastic
Ambient temperature

-40 - 70 °C
Response time

15 s
Switching frequency

33 Hz
Wavelength of the sensor

680 nm
Type of light

Polarity free red light
Suitable for safety functions

false
Degree of protection (IP)

IP67
Material of cable sheath

Polyvinyl chloride (PVC)
Rated switching distance

400 mm
Max. switching distance

400 mm
Diameter sensor

30 mm
Adjustment range

0 - 400 mm
Housing material

Plastic
Cable length (m)

2

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
