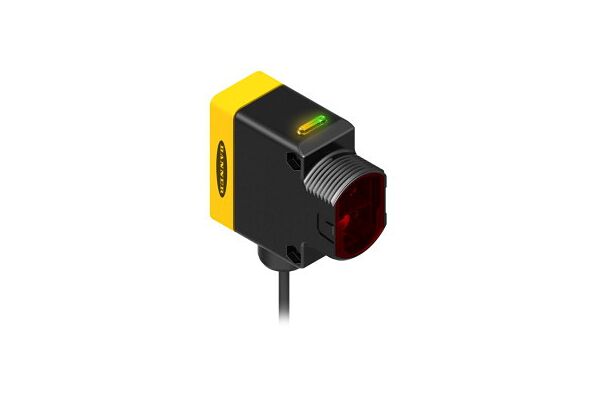

QS30VR3FF200 W/30 Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

QS30VR3FF200 W/30

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppression, Operating voltage 24…250 VAC / 12…250 VDC, Max. range 200 mm, Cable length 9 m, Cable, PVC, 9 m, Protection class IP67, LED all-round visible, Operating voltage: 12…250 VDC or 24…250 VAC, Relay output, changeover

  • SKU
    0662488731991
  • Manufacturer code
    3073199
  • Type of electric connection
    Cable
  • Type of switching output
    Relay contact
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    44 mm
  • Length of sensor
    51.5 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 70 °C
  • Response time
    15 s
  • Switching frequency
    250 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    200 mm
  • Max. switching distance
    200 mm
  • Diameter sensor
    30 mm
  • Adjustment range
    0 - 200 mm
  • Housing material
    Plastic
  • Cable length (m)
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-52639-c60df2ef53feabe70b8ab45c52ff1cc7.pdf (PDF, 668.6 kB)
