QMT42VN6AFV400Q Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression

QMT42VN6AFV400Q

Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression, Operating voltage 10…30 VDC, Max. range 400 mm, Male M12 × 1, 4-pin, Metal housing, ZN, black, Protection class IP67, Scanning width adjusted via potentiometer, Operating voltage 10…30 VDC, NPN switching output, Light/dark operation

  • SKU
    0662488468576
  • Manufacturer code
    3046857
  • Type of electric connection
    Connector M12
  • Type of switching output
    NPN
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid

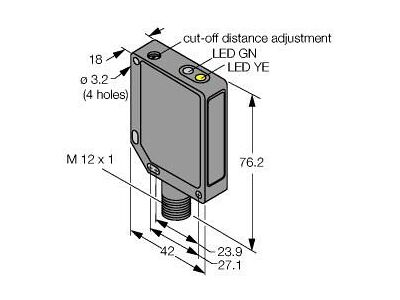

  • Width sensor
    18 mm
  • Height of sensor
    76.2 mm
  • Length of sensor
    42 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 55 °C
  • Response time
    1 s
  • Switching frequency
    500 Hz
  • Wavelength of the sensor
    680 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    400 mm
  • Max. switching distance
    400 mm
  • Adjustment range
    125 - 400 mm
  • Housing material
    Metal
  • Type of switching output
    NPN
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-50174-f79415a220738230b1016b7b94a5c8fd.pdf (PDF, 484.27 kB)
