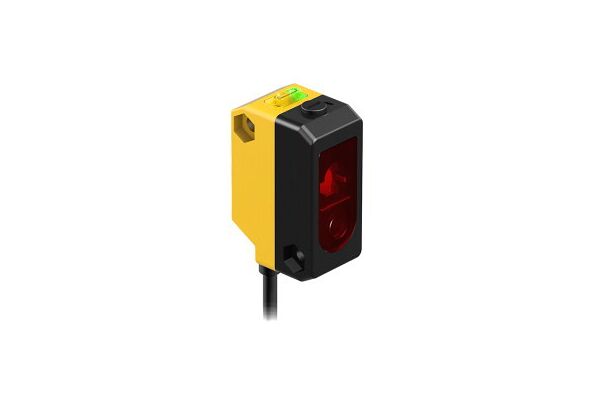

QS18VN6AF100Q Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression

QS18VN6AF100Q

Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression, Operating voltage 10…30 VDC, Max. range 100 mm, Cable length 0.15 m, Cable with male end, 4-pin, PVC, 150 mm, 8 mm, Protection class IP67, LED all-round visible, Cut-off point adjusted via potentiometer, Operating voltage: 10…30 VDC, NPN switching output, changeover

  • SKU
    0662488655013
  • Manufacturer code
    3065501
  • Type of electric connection
    Connector M8
  • Type of switching output
    NPN
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    15 mm
  • Height of sensor
    34.5 mm
  • Length of sensor
    21.1 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    0 - 55 °C
  • Response time
    0.7 s
  • Switching frequency
    700 Hz
  • Wavelength of the sensor
    640 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    100 mm
  • Max. switching distance
    100 mm
  • Adjustment range
    1 - 100 mm
  • Housing material
    Plastic
  • Type of switching output
    NPN
  • Connector gender
    male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-43143-f1d0ba07a1f4173c46ae7f3d537c7f67.pdf (PDF, 367.19 kB)
